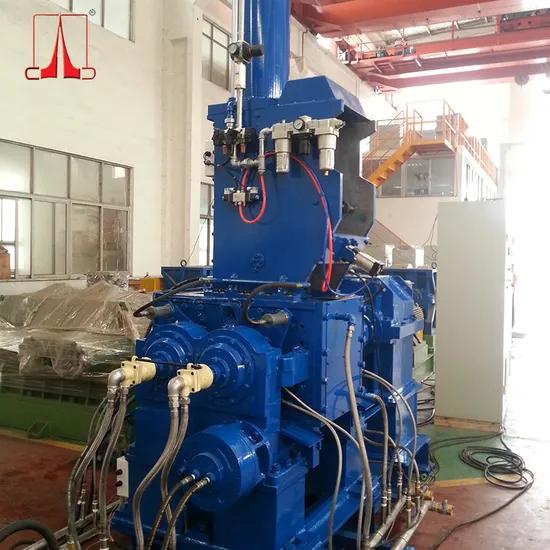

Lx-90L Widely Used Good Quality Banbury/Internal Mixer/Rubber Kneader Mixer

Product Description

Quick Details
Certification: CE, SGS, lAF, CNAS
Warranty: 1 year
After-sales Service Provided: Overseas service center available
Rubber Machine Name: Banbury Mixing Machine
Plastic Banbury Color: Green / Blue / etc. (customize available)
Banbury Mixer Material: Cast Iron / Steel
Motor for the Internal Mixer: Frequency Control or not
Banbury Mixing Machine Rotor: Tangential
Thickness of Abrasion-resistant Alloy: 5 mm
Drive of Top Mounted Hammer: Pneumatic or Hydraumatic
Hardness of Mixer Machine Rotor: 50 HRC
Packaging Details:Delivery Detail:

Wood Pallet & Film Wrap (Banbury Mixing Machine)

90 Working Days Since Down Payment (Banbury Mixing Machine)

Specifications

Banbury Mixing Machine
1. Since 1992
2. CE,SGS,lAF,CNAS certified
3. Converter Motor & Intermesh Rotor
4. Abrasion Resistan
Why Choose Banbury Mixing Machine Products from Lanhang
1. We're founded in 1992, with more than 20 years' professional experience
2. Fourtune global 500 companies' supplier
3. Overseas service center available (in Europe, Japan, Dubai, etc.)
4. International CE, SGS, IAF, CNAS certification
5. National high-tech enterprise / products
6. We own various National Patent for Inventions Letters for rubber & plastic machinery
7. ISO9001:2008 management
Main Parameters of Our Banbury Mixing Machine:

Model	LX-75L	LX-100L	LX-120L	LX-160L	LX-255L	LX-270L	LX-410L
Chamber Volume (L)	75	100	120	160	255	270	410
Filling Coefficient	0.75
Rotor Type	Tangential
Rotor Speed (r/min)	40	40	40	40	4-40 6-60	4-40	6-60
Rotor Speed Ratio	1:1.17
Max. Capacity (T/H)	1.25	1.6	1.95	2.64	4.6	4.6	7.4
Power Supply	AC 380V 50HZ 3P (customized available)
Motor Power (Kw)	160	220	310	355	1500	1250	2x1250
Weight (T)	20	24	26	28	55	55	76

Application of Our Banbury Mixing Machine
It's suitable for tire and rubber industries insulating material and cable industries to plasticization, master-batch and final mixing, especially for mixing of radial tire compound.

Features of Our Banbury Mixing Machine
Our Mixer has international standard performances. It has reasonable design, advanced structure, high manufacturing quality, reliable operation and long service life.
All parts contact with the compounds are circulated through cooling water with large enough cooling area. It is equipped with water-temperature control. Which is the guarantee of quality for mixed various compounds.

Description of Our Banbury Mixing Machine
Driving system consists of motor and high precision hardened gearbox with drum type teeth coupling and high speed couplings. It takes many kinds of forms for changing speed: DC motor, AC motor, AC motor with converter, Hydraulic motor drive. The machine has the advantages of smooth-driving, low-noise and along service, etc. Control system adopts PLC with both manual and automatic functions with easy shift. It can realize to the control of time, temperature and energy. Signal checking, feedback as well as safety protection are provided so as to control mixing quality of compounds more effectively, to shorten assistant time and to reduce labor intensity.
Packaging & Shipping
Wood Pallet & Film Wrap ( Banbury Mixing Machine )

Our Services
Banbury Mixing Machine
1. One year warranty
2. Engineers available to service machinery overseas (installation, debugging, commissioning and maintenance.)
3. Overseas service center available (in Europe, Japan, Dubai, etc.)
4. Life-long technical support

---
