Product Details
Product Description
Product Description

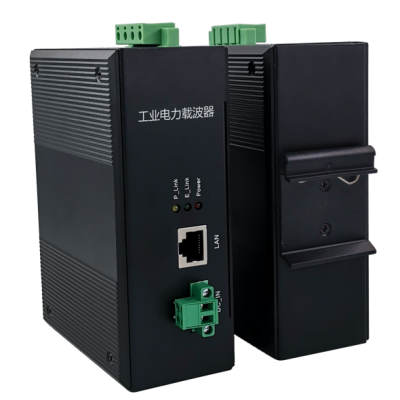

High Definition-Power Line Communication
KS1000M Gigabit type
Products Features:
●Intelligent manufacturing,industrial ethernet transparency propagation,gigabit bandwidth 480 Mbps,
industrial grade standards.
●The advantages of broadband power line carrier over traditional narrowband power line carrier communication
are high communication rate, bi-directional transmission, good transmission stability and high scalability.
●Industrial DIN rail installation, can be quickly installed and disassembled ,to save space.
●It is adopt dual power supply design，it can be powered either through the power supply port
or through the PLC channel port line to take power.
●It is a gigabit bandwidth power carrier communication equipment based on IEEE P1901,
using OFDM modulation and demodulation technology, and conforming to the EU EN-50561 standard.
●Supports a variety of networking methods, bus, star, tree, and hybrid network topologies structure.
Technical data:
Classification
| Technical indicators
|
Power supply
| MS type：DC 12-48V， also can be taken the power from
the PLC port line
MT type：DC 12-48V
|
PLC channel interface
| MS type AC：AC85V～528V，50Hz/60Hz
DC：DC100V～745V
MT type AC：0-500V
|
Overall power consumption
| ≦5W
|
Modulation Type
| OFDM
|
Ethernet
| 10M/100M/1000Mbps self-adaptation
|
Transmission bandwidth
| Max is 480Mbps
|
Transmission distance
| Power line up to 800 meters，coaxial cable maximum
3000 meters
|
Carrier frequency
| 2～68 MHz
|
Data delay
| With 10ms
|
Packet loss probability
| Less than 0.1‰
|
Standard agreement
| IEEE 1900，IEEE 1901，IEEE 1905.1，
IEEE 802.3，IEEE 802.3U，IEEE 802.3ab，
Home Plug 1.0，Home Plug AV，Home Plug AV2，
TCP/IP，UDP，Profinet，Modbus-TCP，
QAM，QPSK，BPSK，ROBO，HS-ROBO，Mini-ROBO
|
Way of encryption
| AES-128bit
|
Multicast management
| Support IGMP multicast protocols,the maximum number
of nodes is 64
|
Exterior Dimensions
| 105.2*53.5*136mm （L*W*H）
|
Environmental requirement
| Operating temperature：-40℃～85℃
Operating humidity：10%-95%（Non-condensation）
Storage temperature：-40℃～85℃
|
Working time
| Industrial grade, supports 7*24 hours all-weather work
|
Installation method
| RAIL TS35/TS35 installation of steel rail
|
Exterior dimensions:
The PLC(KS1000MS) ’s length, width and height are：105.2*53.5*136mm，rail mounting.
Applications:
The HD-PLC KS1000M is an industrial grade power line carrier ，suitable for industrial communication scenarios
in harsh environments，including mines, oilfields, warehousing, logistics sorting,three-dimensional parking garages,
railway and metro communications, industrial automation control and other fields, through the existing
power lines or slip contact cord for bidirectional, real-time, high-speed, long-distance data transmission.
