Product Details
Product Description
Product Description

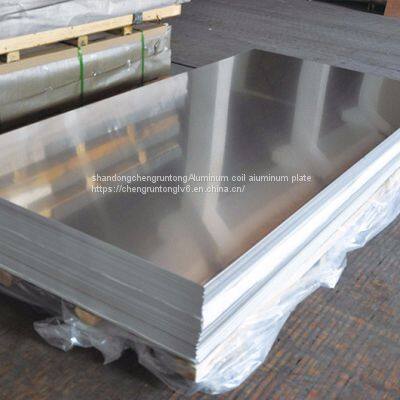

Aluminum coil (cold rolled aluminum coil)
Material 1060, 1145, 1050, 1100, 8011, 3003, 3004, 5052, 5083, 6061
Thickness 0.10mm----10mm
Width 800mm----1900mm
5 series aluminum plate
The aluminum alloy plate represents the 5052.5083.5754 series, and the 5 series aluminum plate is the most commonly used alloy aluminum plate series. The main element is magnesium, and the magnesium content is between 3% and 5%. It can be called aluminum-magnesium alloy. The main feature is low density. Tensile strength. Elongation, in the same area, the weight of aluminum-magnesium alloy is lower than that of other series of aluminum alloys, so it is often used in aviation, such as aircraft fuel tanks, 5 series alloy aluminum plate is hot rolled aluminum plate, 90 degrees bending without cracking. The surface is coated without scratches and is anodized.
5052 aluminum sheet size table introduction. Thickness and width are mm
0.5*1000*2000 0.8*1000*2000 0.8*1250*2500 1.0*1250*2500 1.0*1500*3000
1.2*1000*2000 1.5*1250*2500 1.5*1500*3000 2.0*1250*2500 2.0*1500*3000 3.0*1250*2500
3.0*1500*3000 4.0*1250*2500 4.0*1500*3000 5.0*1250*2500 5.0*1500*3000 5.0*1000*2000
10*1250*2500 10*1500*3000 12*1250*2500 15*1250*2500.
5052 medium thick aluminum plate 10mm- 100mm thickness are available. Size can be sawn to small specifications and sizes. Width and thickness specifications
5052 aluminum coil 0.5mm - 3.0mm thickness are coil. Width and length
6 series aluminum plate
6061-T6 aluminum plate, mainly containing magnesium and silicon two alloying elements, suitable for corrosion resistance, oxidation, welding, high hardness, hardness requirements of the product processing... Heat treatment,.
2. Thermoplastic, can be extruded into a complex structure at high speed. Thin wall. Hollow various profiles or forged into complex structure forgings, wide quenching temperature range, low quenching sensitivity, extrusion and forging after stripping, as long as the temperature is higher than the quenching temperature. Quenching can be done by spraying or piercing water. Thin-walled parts (6<3mm) can also be air-quenched.
3. Welding performance and corrosion resistance, in the heat treatment can strengthen the aluminum alloy, Al-Mg-Si alloy no stress corrosion cracking phenomenon was found in the alloy. 4. The processed surface is easy to anodize and color.
Uses. Ships. Mold making. Furniture. Machine parts, precision machining, Industrial manufacturing.
6061-T6 aluminum plate common specifications (aluminum magnesium silicon alloy) thickness and width are mm
6061-T6 aluminum sheet spot size thickness 0.8mm-6.0 mm, width 1250*2500 length
8 mm -200 mm thickness. The width is 1500*3000. Length. Size can be cut into small pieces. Cutting according to customer demand size。
>>
