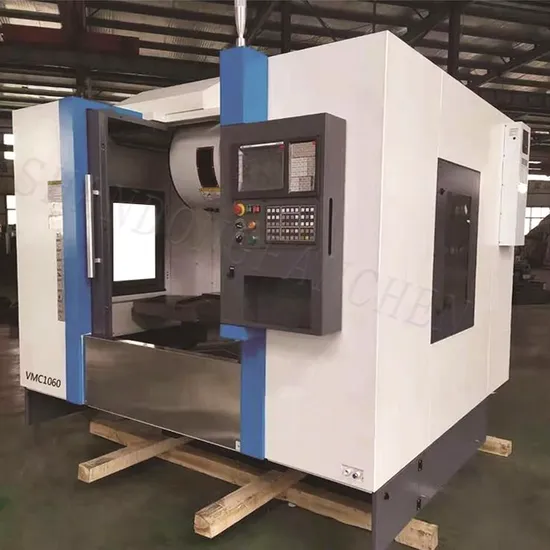

Three Line Rail Long Stroke Vmc1060 Vertical Machining Center CNC Milling Machine

Product Description

project	unit	VMC1060
X axis itinerary	mm	1000
Y axis itinerary	mm	600
Z axis itinerary	mm	600
Number of workbench	pcs	1
Distance from spindle end face to workbench center	mm	120-850
Distance from spindle center to worktop	mm	713
Spindle speed	rpm	8000
Spindle power	KW	11
Spindle taper		BT40-150 / BT50
Workbench area	mm	1100×600
Maximum load of the workbench	kg	800
T-type slot size	mm	5-18-120
X-axis rapid displacement	m/min	24
Y-axis rapid displacement	m/min	24
ZZ-axis rapid displacement	m/min	24
Cut into give speed	mm/min	1-10000
Controller system		FANUC
X / Y / Z guide rail form		two line one hard axis rail
X / Y / Z ball guide rail	mm	45/45/45
Tool magazine form		Disk tool magazine
tool magazine	pcs	24
Tool change time	s	2.5
Accuracy detection standard		JISB6336-4:2000/GS/T 18400.4-2010
X / Y / Z axis accuracy	mm	±0.0075
Repeat positioning accuracy of the X / Y / Z axis	mm	±0.005
machine weight	Kg	6200(±5%)
Outer dimension of the machine tool (length, width and height)	mm	2700×2300×2750

Optional

Spindle	Electric spindle 18000-24000 turn with turning function
Tool magazine	Disk 24 tool magazine
Rotating platform	The fourth axis of the platform Cradle turn Cradle with turning function transfer table
Controller system	KND Siemens 840 Fanuc Mitsubishi Syntech GSK( China Guangzhou Digital) /H N C( Huazhong Central China)

FAQ
1.:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
