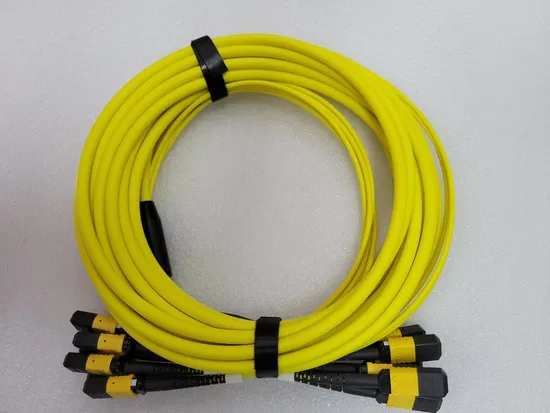

Communication 12 Core MPO MTP Breakout Fiber/Fibra Optica/Optic/Optical Cable Patch Cord

Product Description

Communication 12 Core MPO MTP Breakout Fiber/Fibra Optica/Optic/Optical Cable Patch Cord
Description The MPO/MTP patch cord is a multi-fiber patch cord which is used in high density fiber networks. It's specifically designed for fast ethernet, data center, fiber channel and gigabit ethernet applications.
MTP /MPO trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.
Applications 1. Telecommunication 2. Computer networks 3. CATV networks 4. Active device termination 5. Instrumentation Features 0.9mm, 2.0mm, and 3.0mm fiber optic cable are optional Different fiber sequences and different key configurations are optional. Available in 8/12/24 fibers Ribbon ,Ruggedized or fan-out cord is available LSZH, PVC,OFNR and OFNP rated jacket are optional. Meet IEC61754 , TIAFOCIS 5/604-5 , bell core GR-143 requirements Product Parameter

Characteristic		SM , MM
Connector type		FC/SC/ST/LC/MU/MT-RJ/ESCON/E2000
Diameter(mm)		0.9,2.0,3.0
Polishing grade		SM UPC	MM UPC	SM APC
Insertion loss	Grade B	≤0.15dB	≤0.1dB	≤0.15dB
	Grade C	≤0.30dB	≤0.30dB	≤0.30dB
Return loss		≥55dB	≥30dB	≥65dB
Interchangeability		≤0.1dB
Repeatability		≤0.1dB
Operation temperature (ºC)		-20°C ~ +70°C
Storage temperature (ºC)		-40°C ~ +80°C

Product Testing
Package
FAQ
1. Can I visit you?
-Sure,our factory is in Shenzhen ,China. Kindly contact us to make an appointment.
2. How long is your delivery time?
-Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3. What is your payment terms?
-Payment<=3000USD, 100% in advance. Payment>=3000USD, 30% T/T in advance ,balance before shippment.
4. How about the warranty?
-There are 12 months for the warranty. While the warranty is not responsible for those broken by violence or updated with other brands.
5. Can you produce according to the samples?
-Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

---
