Double Cylinder Hydraulic Rubber Cutter Rubber Bale Cutter Vertical Cutter

Product Description

Automatic Rubber Cutter Machine, Rubber Sheet Bale Cutting Machinery, Butyl Rubber Block Cutter Machinery
This machine is mainly suitable for cutting natural rubber, synthetic rubber and other plastic materials. It is especially suitable for installing next to the internal mixer and cutting small rubber materials.
Machine Features
It is mainly composed of a rubber cutter, a frame, a working cylinder, a base, an auxiliary workbench, a hydraulic system, and an electrical system. The blade of a rubber knife. When cutting raw rubber, manually place the rubber under the rubber cutting knife, and then press the start button, the rubber cutting knife is driven by the piston rod along the slide on the rack to cut the rubber.

Technical Parameter

Model	HHS-660	HHS-800	HHS-1000	HHS-1200	HHS-1500
Rated Pressure	12T-40T	20T-80T	20T-80T	12T-100T	40T-150T
Motor Power	3.0-7.5kw	4.0-11kw	5.5-11kw	7.5-15kw	7.5-15kw
Cutter Wideth	660mm	800mm	1000mm	1200mm	1200mm
Itinerary of Work	600-800mm	600-800mm	800-1000mm	1000mm	1200mm
Working Oil Pressure	10Mpa	16Mpa	20Mpa	20Mpa	25Mpa
Dimension	1000*600*1300mm	1100*600*1500mm	1250*600*1700mm	1550*800*1800mm	1800*1000*2000mm
Weight	600kg	1000kg	1200kg	1500kg	2000kg

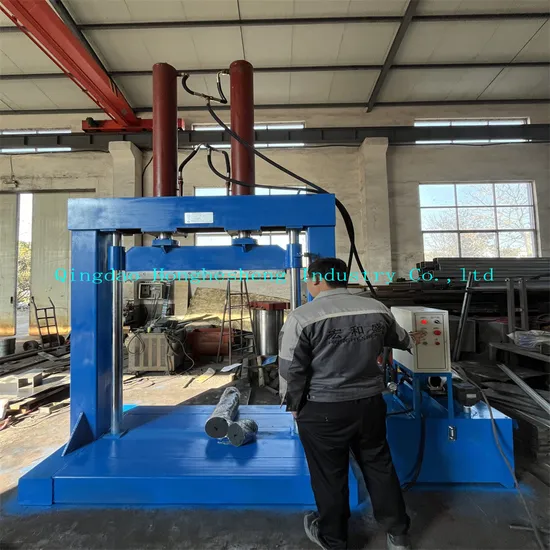

Machine Pictures
Machine Delivery
Related Machines
Our factory is professional in manufacturing different types of plate vulcanizer,also can manufacture rubber cutter,open mixing machine,and kneading machine,etc. Welcome to contact me for more machine details~~

---
