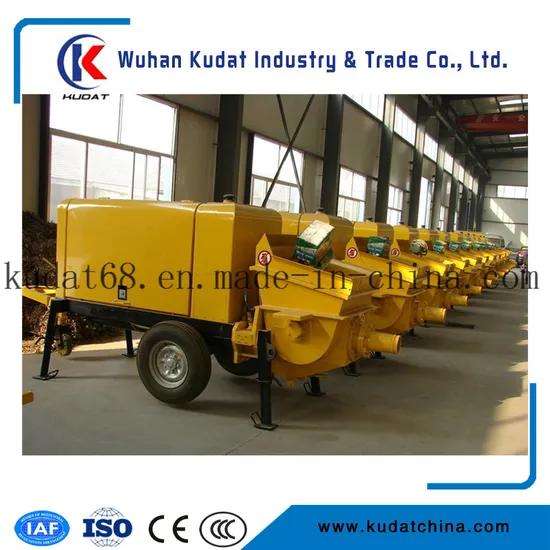

Electric Concrete Delivery Pump Hbt80sea

US$50,000.00-60,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
HBT80SEA-1818
Machining Process
Hydraulic
Structure
Cylinder Type
Productivity
75m²/h
Feeding Height
1390mm
Vibrating Amplitude
1.6mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Orange
Valve
S Valve
Feeding Pressure (MPa)
18
Max. Theo. Feeding Volume (M3/H)
80
Electric Motor (Kw)
132
Hydraulic Oil Tank Capacity
560
Oversize L*W*H(mm)
6200*2050*2200
Max.Trail Speed (Km/H)
8km
Total Weight (Kg)
7410
Olume of Hopper*Loading Height M3/mm
0.9*1400
Max. Feeding Aggregate Diameter (mm)
50
Transport Package
Nude Packing
Specification
ISO, CE
Trademark
Kudat
Origin
China
HS Code
84134000
Production Capacity
500units /Month

Product Description

The HBT series concrete pumps have over 20 types of products specifications, including diesel engine and electrical engine S valve and gate Valve pumps. Through worldwide souring of parts and technology from leading suppliers, it enables HBT series concrete pumps to a high efficient and reliable concrete transporting machine.
Using Bosch Rexroth of Germany to supply hydraulic components. Its high reliability and longer economic life will enhance the overall quality of the machine as a whole.
Adopting double pumps double returning inflow open hydraulic pressure system, so that oil out pumping and direction switching are operating independently, rendering the system simpler and more reliable.
Using returned oil filter technology to prevent alien
Objects from entering the hydraulic circuit, further
Improving the reliability of the system.
Using the anti-wear hydraulic oil specially made
By Esso of US enhacing durability of the machine
HBT80SEA-1818
Valve S Valve
Feeding pressure (MPa) High (MPa) 18
Low (MPa) 9.2
Max. theo. Feeding volume (m3/h) High (m 3 /h) 46
Low (m 3 /h) 80
Electric motor
 (kW) 132
Main
 Rate pressure (MPa) 32
Rate flow (L/min) 385
Max. theo. delivery. (m)
 Pipe
Ø 150A horizontal 1350/ vertical 310
Ø 125A horizontal 1250/vertical 290
Max. feeding Aggregate diameter
mm
Pipe
 Ø 150A 50
Ø 125A 40
Feeding cylinder (Bore x Stroke) (mm) Ø 200× 1800
Volume of hopper × Loading height m 3 /mm 0.9× 1400
Hydraulic oil tank capacity 560
Oversize L × W × H(mm) 6200× 2050× 2200
Max. trail speed (km/h) ≤ 8KM
Total weight (KG) 7410
