US$25,000.00-32,000.00
|
1 set
(MOQ)
|
Basic Info.
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Processing Precision
0.008
Performance Classification
High-End CNC Machine Tools
Certification
GS, CE, ISO 9001
Product Name
Slant Bed CNC Lathe
Bar Through Diameter
50mm
Boring Tool Holder
40/32/25/20
Outer Diameter Tool Holder
25X25mm
Turret
8/10 Hydraulic or Servo
Transport Package
Wooden Case
Production Capacity
2000/Year
Packaging & Delivery
Package Size
402.00cm * 215.00cm * 220.00cm
Package Gross Weight
4200.000kg
Product Description
Product Description

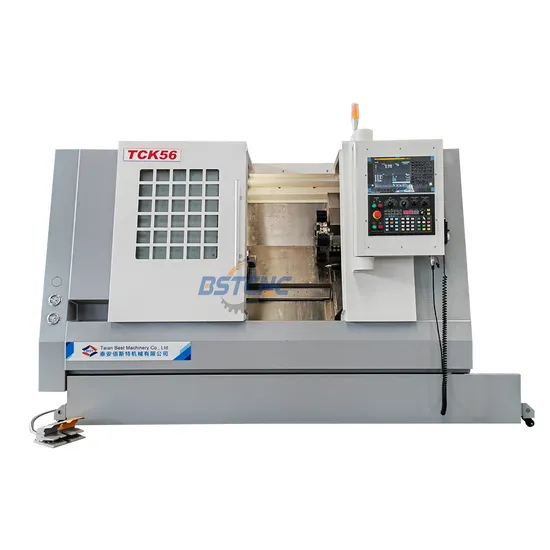

The TCK series CNC lathe is a high-quality product designed and produced by our company to meet market development needs. This machine tool can process shaft and disc parts, turn threads, arcs, cones, and inner and outer surfaces of rotating parts, and perform efficient, large-scale, and high-precision processing on rotating parts.
Standard configuration:
-GSK988TA control system;
-3-jaw 8'' hydraulic chuck and hydraulic station ;
-8 station servo turret;
-Hydraulic tailstock ;
Optional configuration:
-Siemens808D,Fanuc0i-TF, Syntec22TA, Mitsubishi;
-10"hollow hydraulic chuck;
-12 station hydraulic/servo turret;
-Chip conveyor;
-Auto servo bar feeder;
-Parts catcher;
Product Parameters
| Item | Unit | Specification | Remark |
| Max.swing diameter over bed | mm | 560 | |
| Max.processing length | mm | 500 | |
| Max. processing diameter | mm | 350 | Horizontal 8-station turret |
| Standard processing diameter | mm | 280 | |
| Spindle head form | | A2-6 | Spindle unit |
| Spindle bore | mm | 65 | |
| Bar through spindle bore | mm | 50 | |
| Main spindle | Spindle speed range | r/min | 50~4500 | |
| Main motor power | kW | 11/15 | |
| X axis rapid feed | m/min | 30 | |
| Z axis rapid feed | m/min | 30 | |
| X axis travel | mm | 200 | |
| Z axis travel | mm | 550 | |
| Tailstock travel | mm | 450 | |
| Tailstock sleeve travel | mm | 100 |
| Tailstock sleeve taper | | MT5 |
| Cutting Tool size | Outer circle cutting tool | mm | 25×25 | |
| Boring tool diameter | mm | Ф40/Ф32/Ф25/Ф20 | |
| ATC choose the nearest tool | | Yes | |
| Weight | kg | 3600 | |
| Machine size(LxWxH) | mm | 2800×1900×2000 | |
Detailed Photos
