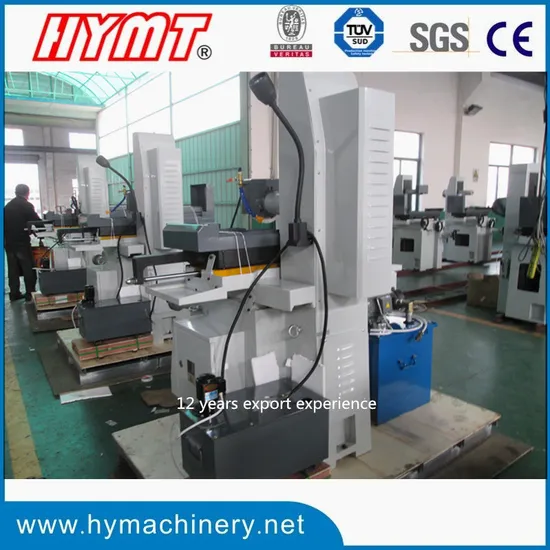

high precision hydraulic surface grinding machine with CE standard

Product Description

Main features: 1) Reasonable structure,good rigidity,beautiful appearance,convenient operation. 2) Using precision plastic guide surface and precision scraping,grinding imported hydraulic transmission,driven by synchronous. 3) The main mechanical valve is a special valve grinder,is divided into two parts,the mechanical commutation control,throttle control. 4) Throttle contol part and unloading function can realize the station start and stop. 5) Grinding can be all kinds of plane and complex shaped surface,suitable for motor without grinding the feed. 6) Permanent magnet chuck or electromagnetic chuck as option configurations.
Main specifications:

Technical parameter	Unit	MY820	MY1022	MY1224	MY1230
Max. work piece to be Ground	mm	500x220x450	560x250x450	630x320x530	780x320x530
Max. Grinding Length	mm	530	560	630	780
Max. Grinding Width	mm	220	250	320	320
Distance Form Table Surface To Spindle Center	mm	450	450	530	530
Slide way		V-tape rail with steel ball			Double V-type rail
V-tape rail with steel-ball	kg	200	200	200	200
Table Size(LxM)	mm	480x200	540*250	600x300	750x300
Number of T-Slot	Mm x n	14x1	14x1	14x1	14*1
Speed of working Table	m/min	3-20	3-20	3-20	3-20
Cross Feed on Hand w heel	mm	0.02/Gradution 2.5/revolution	0.02/Gradution 2.5/revolution	0.02/Gradution 2.5/revolution	0.02/Gradution 2.5/revolution
Vertical Feed on Hand wheel	mm	0.01/Gradution 1.25/revolution	0.01/Gradution 1.25/revolution	0.01/Gradution 1.25/revolution	0.01/Gradution 1.25/revolution
Wheel size	mm	200x20x31.75	200x20x31.75	300x25.4x76.2	300×25.4×76.2
Spindle speeds	rpm	2850	2850	1450	1450
Spindle motor	KW	1.1	1.5	2.2	2.2
Hydraulic station motor	KW	1.5	1.5	2.2	2.2
Working Pressure	MPA	3	3	4	4
Max. Capacity	L/min	18	18	20	20
Minimum Of Numerical	L	80	80	100	100
Coolant Pump	KW	0.04	0.04	0.04	0.04
Machine size(LxWxH)	mm	1680x1140x1760	1680x1220x1720	1960x1480x1850	1960x1480x1850
Packing size(LxWxH)	mm	1630x1170x1940	1630x1290x1940	2000x1640x2020	2000x1640x2020
Gross/Net weight	kg	850/750	1000/900	1430/1300	1530/1000

Standard accesspries:
Our Services
1.Standardization of Service "212"
2: response in 2 hours
1: provide solution in 1 day
2: solve complaint in 2 days
2.Installation Service
Installation Services are available with all HYMT machines. We dispatch technician to customer's
factory for installation and preoperation of machines.
3.Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you
may send your technician to our company to learn how to operate machines.
4.Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data.
We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments.

---
