1 Ton Single Sheave Snatch Block Hoisting Pulley with Nylon Wheel

Product Description

1 Ton Single Sheave Snatch Block Hoisting Pulley With Nylon Wheel
Product Description

Product uses:
Apply to assemble and erect the tower, line constriction hoist devices and other hoist operation.
Explain:
Hanger includes hook type, plate type and ring type.This is need indicated when customer place order.

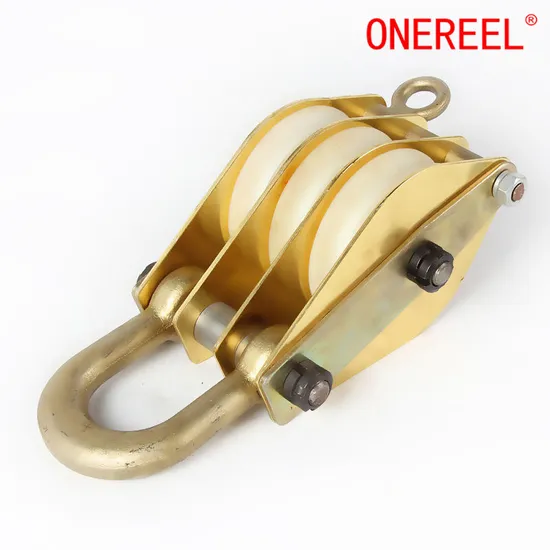

The nylon sheave tackle blocks are used for lifting and sagging operation in transmission line construction. It is light and with heavy strength.
Features:

With Aluminum Alloy side plates, MC Nylon sheaves, the block is lighter.All the sheaves are mounted on ball bearings. The frame is made of galvanized steel.

Product Parameters

Technical Parameter

Item No.	Model	No. of sheaves	Fitting type	Rated Load (KN)	Outer Diameter x Width (mm)	Weight (kg)
11101	QH1GN-1	1	Hook fitting	10	Φ100 x 31	1.8
11102	QH2GN-1	2		10	Φ80 x 27	1.8
11103	QH3GN-1	3		10	Φ80 x 27	2.1
11111	QH1GN-2	1	Hook fitting	20	Φ120 x 35	2.2
11112	QH2GN-2	2		20	Φ100 x 31	2.6
11113	QH3GN-2	3		20	Φ100 x 31	3.7
11121	QH1GN-3	1	Hook fitting	30	Φ142 x 39	3.4
11122	QH2GN-3	2		30	Φ120 x 35	4.5
11123	QH3GN-3	3		30	Φ100 x 31	4.6
11131	QH1GN-5	1	Hook fitting	50	Φ166 x 40	5.2
11132	QH1BN-5	1	Clevis fitting	50	Φ166 x 40	4
11133	QH2HN-5	2	Eye fitting	50	Φ142 x 39	5.5
11134	QH3HN-5	3	Eye fitting	50	Φ120 x 35	5.1
11141	QH1BN-5	1	Clevis fitting	80	Φ205 x 50	7.2
11142	QH2HN-5	2	Eye fitting	80	Φ166 x 40	8.3
11143	QH3HN-8	3	Eye fitting	80	Φ142 x 39	7.9
11151	QH1BN-10	1	Clevis fitting	100	Φ246 x 60	11.4
11152	QH2HN-10	2	Eye fitting	100	Φ166 x 40	10.2
11153	QH3HN-10	3	Eye fitting	100	Φ142 x 39	11.7
11161	QH1BN-15	1	Clevis fitting	150	Φ280 x 65	12.1
11162	QH2HN-15	2	Eye fitting	150	Φ205 x 50	12.8
11163	QH3HN-15	3	Eye fitting	150	Φ166 x 40	11.8
11164	QH4HN-15	4	Eye fitting	150	Φ166 x 40	13.

ONEREEL is specialized in the design and manufacture Steel Spools, Plastic Spools, Cable roller, Yarn Bobbin, aluminum spool , Cable Reel Stand, Sheave Pulley, Cable Conveyor, Hydraulic Puller Tensioner, Gin Poles, Cable Pulling Winch, Safety Tools, Wire Grip, Plastic Parts, and Pump in the industry since 1991. All of our customer spool and wire carrier are engineered and manufactured in our 120,000 square foot state-of-the-art manufacturing plant located in Ningbo, Zhejiang.
ONEREEL is specialized in the manufacture of reels for cables and electric wires, iron axles, disc spool for steel cables and various delivery reels. With strong technological capabilities and full series of production equipment. All of our products go through the dynamic and static balance tests. We have passed the quality system certification ISO9001:2000 to ensure the product quality. Following the standards of GB4004-83, JB/T8997, DIN46395 and DIN46397 in productions.
