| US$34,500.00-36,500.00 | 1 Piece (MOQ) |

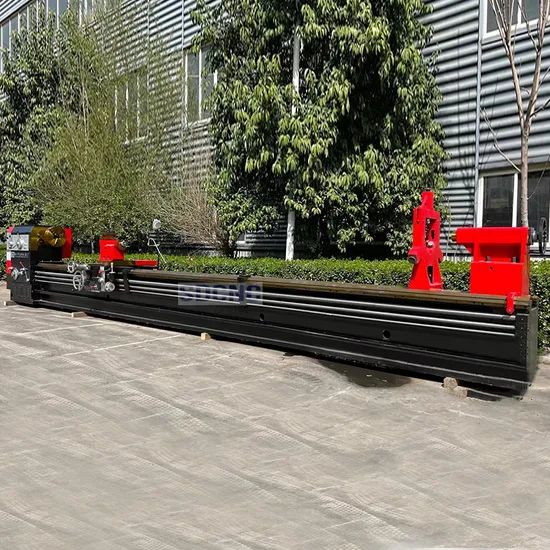

| Specification | Unir | CW61100L |
| Swing over bed | mm | 1000 |
| Swing over cross slide | mm | 610 |
| Distance between centers | mm | 1500/2000/3000/ 4000/5000/6000 |
| Guideway width | mm | 755 |
| Max. load capacity | T | 6 |
| Spindle bore | mm | 130 |
| Spindle bore taper | - | Metric φ140/MT6 |
| Spindle nose type | - | A2-15 |
| Spindle speed steps | - | FWD. 21 steps |
| Spindle speed range | rpm | 3.15-315 |
| Chuck | mm | φ1000 4-jaw manual |
| Turret/tool post | - | Manual turret 4 position |
| Tool shank size | mm | 45 x 45 |
| X axis travel | mm | 520 |
| Z axis travel | mm | 1350/1850/2850/3850/4850/5850 |
| X axis feed grade/range | mm/r | 56/0.05-6 |
| Z axis feed grade/range | mm/r | 56/0.1-12 |
| X axis rapid traverse | mm/min | 1870 |
| Z axis rapid traverse | mm/min | 3740 |
| Metric thread grade/range | mm | 44/1-120 |
| Inch thread grade/range | T.P.I | 31/28-3/8 |
| Module thread grade/range | mm | 45/0.5-60 |
| DP thread grade/range | D.P. | 30/56-1 |
| Tailstock quill diameter | mm | φ160 |
| Tailstock quill taper | - | MT6 |
| Tailstock quill travel | mm | 300 |
| Main spindle motor | kW | 22 |
| Rapid traverse motor | kW | 1.5 |
| Coolant pump motor | kW | 0.125 |
| Width x Height | mm | 2000 x 1800 |
| Length | mm | 4600/5100/6100/ 7100/8100/9100 |
| Net weight | T | 9.6/10.1/10.7/11.7/12.7/13.7 |
