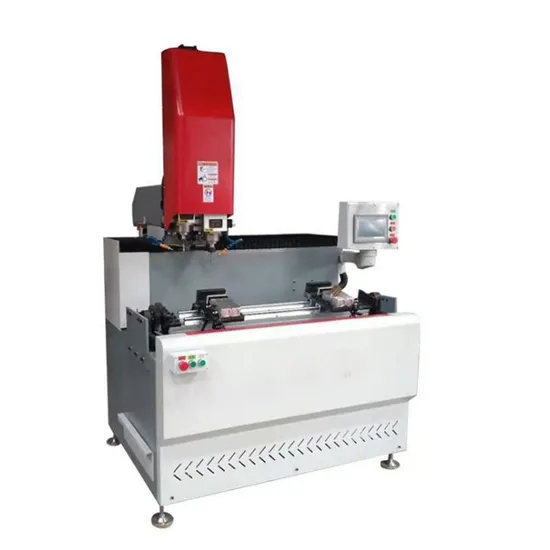

CNC Pipe Cutting Machine 90 Degree Aluminum Alloy Automatic Cutting Machine

Product Description

Product Description
Feature:1 drilling and milling single head
2 CNC Touch screen PLC
3 One-time clamping , processed on both sides Product Parameters

Motor speed	1800r/min
Milling motor power	3kw
Drilling motor power	1.5kw
Drilling and milling running method	Three-axis linkage
Control method	Servo motor
XYZ axis servo motor power	2.25kw
Lateral travel (X axis)	3000mm
Longitudinal travel (Y axis)	3000mm
Vertical travel (Z axis)	300mm
X axis running speed	0-80m/min
Y axis running speed	0-75m/min
Z axis running speed	0-75m/min
Workbench Working angle	0 degree,+90degree
Drilling tool size	Re32-φ8mm
Cooling method	Automatic spray
Voltage	3phase
Processing size	160x160x800mm
Working pressure	0.6-0.8mpa
Measure	1950x1350x1900mm
Weight	430kg
Processing specialty	One-time clamping , processed on both sides

Packaging & Shipping
Company Profile


FAQ
1 how long have you been in this filed?
we have been in this filed for more than 15 years
2 Do you have any Certification with product or your factory?
yes, we have passed TUV certification with our product and factory
3 where is your factory?
we are in shandong province,it is about 150KM far from Qingdao port
4 Can we be as yoUr agent in our country?
yes, if you have this idea, welcome to visit our factory and talk about this, or we fly to visit you recommend product

---
