2 Worms Fully Automatic Chain Link Fence Making Machine with Compact Roll

Product Description

Product Description

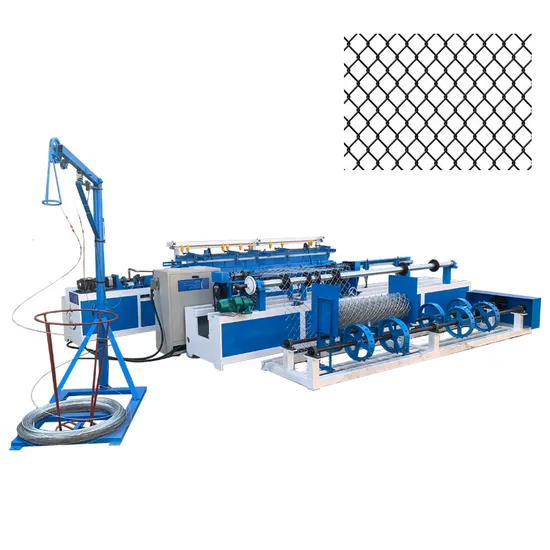

Fully Automatic Single Wire Chain Link Fence Machine

This chain link fence machine can use diameter 1.3-4.0mm galvanized wires and PVC coated wires and other materials,the raw material tensile strength can be 350-800MPA to produce chain link fences,adopts servo motor to weave,PLC and touch screen to control,automatic twisting edge or knuckling edge,automatic rolling m esh.These fences are mainly used as airport fences,playground fences,high way fences,railway fences and so on.
Fully Automatic Double Wires Chain Link Fence Machine
This chain link fence machine can use diameter 1.8-4.0mm galvanized wires and PVC coated wires and other materials,the raw material tensile strength can be 350-800MPA to produce chain link fences,adopts servo motor to weave,PLC and touch screen to control,automatic twisting edge or knuckling edge,automatic rolling m esh.These fences are mainly used as airport fences,playground fences,high way fences,railway fences and so on.


Detailed Photos

Product Parameters

Type	WZ-CLM	WZ-DCLM
Wire Diameter Range	1.3-4.0mm	1.8-4.0mm
Material	galvanized wires,PVC coated wires,Zinc aluminum alloy wire	galvanized wires,PVC coated wires,Zinc aluminum alloy wire
Mesh Size	20*20-100*100mm	25*25-100*100mm
Working Speed	80-100sqm/h	100-180sqm/h
Max Mesh Width	500-4000mm or customized	500-4000mm or customized
Max Mesh Length	30m or customized	30m or customized
Weaving Way	Servo Motor	Servo Motor
Mesh Edge Treating Way	Twisted or Knuckled	Twisted or Knuckled
Dimension	4.2*2.2*1.2m (most type WZ-3000CLM)	5.7*2.3*1.8m (most type WZ-3000DCLM)
Weight	2.2tons	3.8tons

Certifications

Company Profile
Anping Wanzhong Wire Mesh Products Company entered the wire mesh industry in 2006, specializing in the manufacturing of various types of Fence Mesh Welding Machines, Reinforced Mesh Welding Machines, Automatic Construction Mesh Welding Machines, Breeding Mesh Welding Machines, Chain Link Fence Machines,Cattle Fence Machine, Nail Making Machines, Wire Drawing Machines, Barbed Wire Machines, Razor Barbed Wire Machines,Wire Straightening and Cutting Machine,etc.Wanzhong Company has its own professional R&D team,customized design and production can be carried out according to the special requirements of customers,and has already won fifteen national patents until January 31,2022. It has successfully passed ISO9001-2008,CE certification and SGS certification,and it is recognized as a national high-tech enterprise by our government,and our company credit rating is "AAA".Our machines have already exported to more than 40 countries, including USA,Russia,Algeria,Malaysia,the United Arab Emirates, Kuwait, Yemen, Oman, India, Uzbekistan, Kazakhstan, Iraq, Mexico, Tunisia, Kenya, Tanzania and Egypt.Wanzhong Company has its own professional and experienced after-sales service team, 365 days 24 hours to provide you with the most professional and intimate installation, guidance and maintenance services.

Production Procession
After Sales Service
We supply the detailed guidance and clear labeling in all the connecting place,thus our customers can try to install by themselves.
Special technical engineers supply urgent technical support and consulting,at the same time,we assign one technical engineer to install and debug the machine according to our clients, then our clients will assume round-trip tickets,eating,accommodation costs and ensure him the personal healthy and property safety, and pay 120 salaries per day.
Guarantee: one year. Within one year after the date when the goods reach the destination port if the parts (not including easily damaged parts ) are broken for reasons which are not human, the seller will change the same with a new one free of cost. but the buyer will pay for postage.

---
