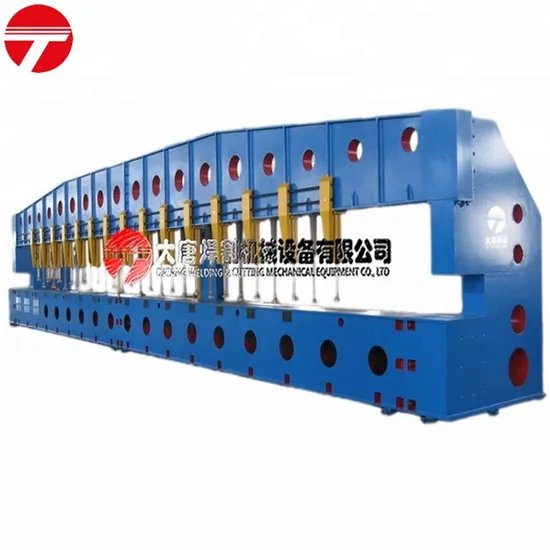

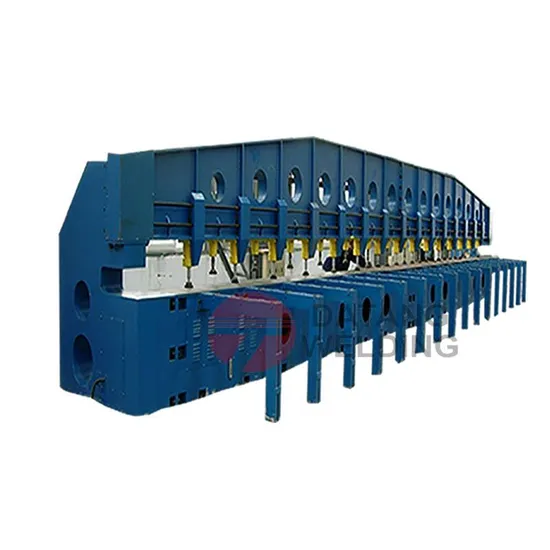

Compare with the traditional edge milling machine. The series Edge Milling Machine has the assemble and disassemble track with heat-treatment. The lathe has the reasonable structure. The milling head running is steady and reliable. The feeding system and backing system is identified full, free speed is fast and efficiency is high. The milling head angle adjusting is easy. The tailor made milling facer and standard milling facer is changeable, which is the new generation product.
| Model | XB-6 | XB-9 | XB-12 |
| Milling angle(°) | 0-45 |
| Milling plate thickness(mm) | 6-50 |
| Milling depth for one time(mm) | 12 |
| Transverse milling speed(mm/min) | 300/500 |
| Milling free speed(mm/min) | 4000 |
| Main shaft rotation speed(rpm) | 125-630 |
| Hydraulic system pressure(MPa) | ≤3.5 |
| Support platform cylinder capacity(Piece) | 8 | 11 | 15 |
| Support platform to the ground distance(mm) | 900 |
| Feeding motor power(kw) | 1.1/0.85 |
| Milling motor power(kw) | 3 |
| Oil pump motor power(kw) | 5.5 |
| Voltage | 380V-3PH-50HZ
(Other voltage can customized ) |
| Options:1.drilling&milling heat 2.three axis Digital Displa |
