1 Hectare Design Agricultural Farm Irrigation Systems Water Pipe Drip Tape

Product Description

1 Hectare Design Agricultural farm irrigation systems Drip Tape

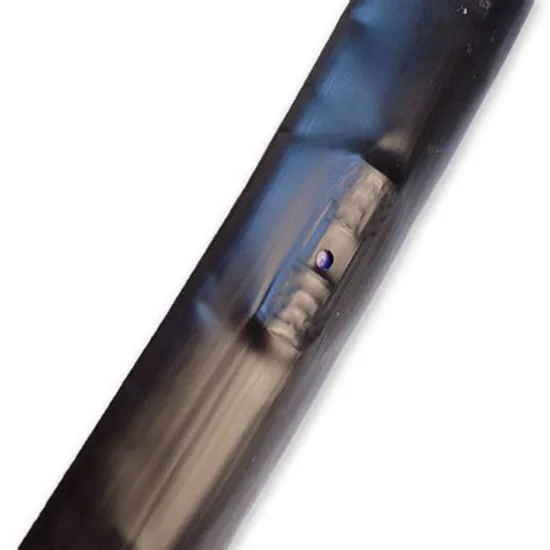

What is drip irrigation tapeThe inner flat emitter drip tape, was inserted the flat emitter into a thin pipe to make it as a integrated tape. Emitter together with the tape, easy installation. With the filter window, the emitter have filter ability. Adopt labyrinth flow pass have the pressure compensation ability. The emitter spacing can be customer requirement.

Diameter (mm)	Thickness	Hole spacing	Packing	Working pressure	Flow rate
16mm	0.2mm	15cm	2000m/roll	0.08-0.3Mpa	1.4L/h 1.6L/h 2.0L/h 3.0L/h
		20cm
		30cm
	0.3mm	15cm	1500m/roll
		20cm
		30cm
	0.4mm	15cm	1000m/roll
		20cm
		30cm

Advantage: Using drip irrigation system in farm land will saving water, saving labor cost, saving time. Can achieve fertilizer together with water, achieve precision irrigation, increase output of crops. Drip tape diameter: 16mm Drip tape wall thickness: 0.2,0.3,0.4mm Working pressure: 50-100kpa (0.2mm thickness) 50-150kpa(0.3,0.4mm thickness) Drop spacing: 200, 300, 400 mm Dripper rated flow; 1.38, 2.2, 3.0L/h Total roll : 1000, 1500, 2000m
Products choose
1-2 years plant, using 0.18/0.2mm wall thickness
2-3years plant, using 0.3mm wall thickness
Long life plant, using 0.4-0.8mm wall thicknes
Packaging size:
Φ500mm* 300mm(Height).
20 feet container include 360 rolls.
40 feet container include 720 rolls.

---
