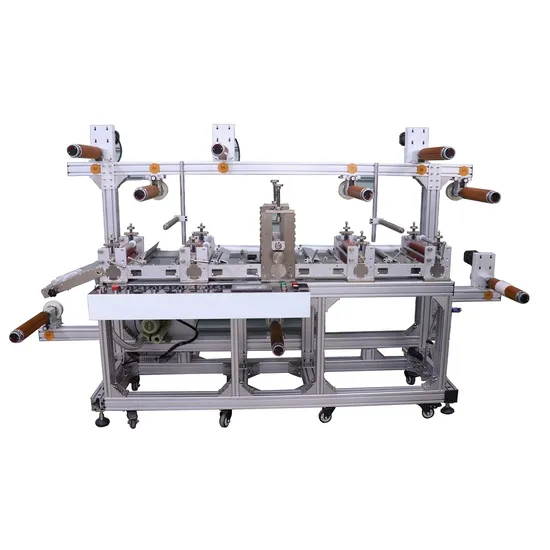

Factory Price Multi-Layer Laminator Laminating Machine with Rotary Die Cutting Function

Product Description

DP-650 420 Multi-layer laminater laminating machine (DP-420) Product Description
Max width:420mm
This machine works on 3-layer lamination, edge tearing and material
collection or linked to press.

Characters:
The laminating shaft is with magnetic powder brake and 3" inflation shaft.
The loading shaft is with magnetic powder brake and 3" inflation shaft.
The collection shaft is with magnetic powder brake and 3" inflation shaft.
A meter counter can be installed. (Option)
A splitting device can be installed. (Option)
Funcional characteristics:
Electric laminating ue and machine complex for the sticking of material without base glue and other materials.
DP-650 Adhesive Tape Laminating Machine
Magnetic powder brake controlling over the unreeling tension, frequency-change stepless speed regulation,
And magnetic powder brake's constant torque controlling over the winding tension, e.
And therefore, it is fast in lamination speed and smiple to operate, hence a necessary equipment matching the label printing machine
420 Multi-layer laminater laminating machine (DP-420)
Purpose:
It is applicable for the laminating and slitting tooling of industrial adhesive tape, cellophane tape, protective film,
Copper foil, aluminum foil, OPP, PE, PVC, sheet, cloth, etc.
This mahcine is widely used in the industries of Printing, Packing, Electronics, Leather and Clothes making, Plastics, etc.
Model: DP-650 Adhesive Tape Laminating Machine
Max Feeding Width ( mm ): 650
Main Engineer Power ( KW ): 3KW
Speed (m/min ): 60
Feeding Diameter ( mm ): 600
Rewinding Diameter(mm): 450
Precision ( mm ): ± 0.10
Power: 220V 50Hz

Pictures	model	max web width (mm)	Description
	DP-420	420mm	roll to roll laminating machine, is applicable to sitck the narrow scope paper , IT can automatically count , set length , stop and alarm ,Complex for adhesive tape such electric label industry as mobile phone,computer and etc .
speed (m/min)	main motor power (kw)	accuracy (mm)	total power (kw)
60	0.75	±0.3	1.5

Detailed Photos

---
