High Performance Corrugated Carton Box Stapler Stitcher Machine

Product Description

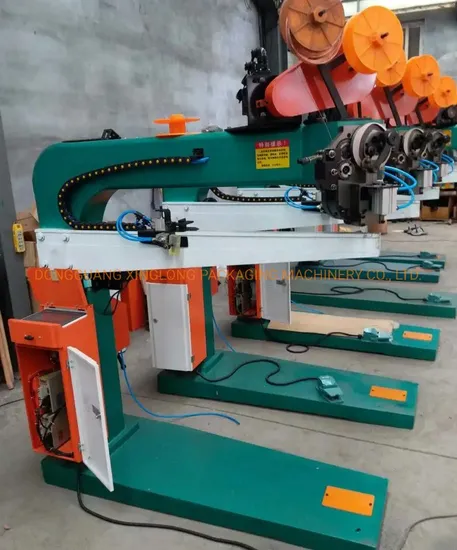

corrugated cardboard double servo stapler machine

Product Description
The machine adopts double servo motor control, high nailing speed, beautiful nail distance and adjustable nail distance. The main parts of the machine head are made of imported alloy steel, which is wear-resistant and has a life expectancy of 3-5 times that of ordinary machines. High, low energy consumption, low failure rate, easy operation, etc., is the ideal nail box equipment for modern carton factories.
Configuration parameters:
1. The servo motor controls the push paper, and the servo motor controls the head to nail.
2. The nail pitch can be adjusted freely from 30 to 120 mm.
3. The number of orders, the number of completed, the remaining quantity, the total length of the nail distance, and the number of nails are displayed on the computer screen.
4, nail speed can be adjusted 160-570 nails / minute.
5. The total motor power is 3KW.
6. Input voltage and frequency: 220V, 50Hz (export products have already met the voltage of the importing country).
Product Parameters

Model	Box height(mm)	binding style	Ribbonfil type	Binding speed	Motor
DHJ-600	Single straight nail	18\20	280staples/min	600	180w/380v, customized acceptable
	Single oblique nail
DXJ-900	45°double oblique nail	17\18	280staples/min	900	370w/380v customized acceptable
DXJ-1200	45°double oblique nail	17\18	280staples/min	1200
DXJ-1400	45°double oblique nail	17\18	280staples/min	1400
DXJ-1600	45°double oblique nail	17\18	280staples/min	1600
DXJ-1800	45°double oblique nail	17\18	280staples/min	1800

Company Profile
DONGGUANG XINGLONG PACKAGING MACHINERY CO., LTD. is specialized in the production of various kinds of carton equipments of the well-know enterprise.
Factory for over twenty years, we introduced advanced technology at home and abroad, developing and manufacturing products, has been well received by customer.
We are specialized in producing 3ply, 5ply, 7ply corrugated cardboard production line, high speed printing machine, ordinary printing machine, single facer, rotary die cutter and other corrugated cardboard production equipment .products are distributed Russia ,the Middle East, Africa, Southeast Asia, EU and other countries and throughout the country. Product quality and enterprise reputation get the high praise at home and abroad.
Over the years the company take "the quality first" "integrity-based" corporate purpose always meet user're-equipments as our sole purpose, providing the products with excellent quality, professional technology. Our company is willing to cooperate with domestic and foreign insight, strive for innovation, coexist win-win, hand in hand altogether will create packaging future.
1. Q: Are you a manufacturer, trading company or a third party?
A: We are a manufacturer, located in Mahai industrial area south of Dongguang county, Hebei province, China. Warmly welcome to visit our company.
2. Q: What is your minimum order quantity, can you send me samples?
A: Our minimum quantity is 1 set, as our product is machinery equipment, it's difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.
3. Q: How does your factory do regarding quality controlling?
A: 1) All raw material we used are environmental-friendly
2) Skillful workers care every details in handling the producing and packing process
3) Quality control department are specially responsible for quality in each process
We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.
4. Q: How about the after-sale service?
A: 1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.
2) To solve the problems with videos/pictures.
3) One year warranty for spare parts change.

---
