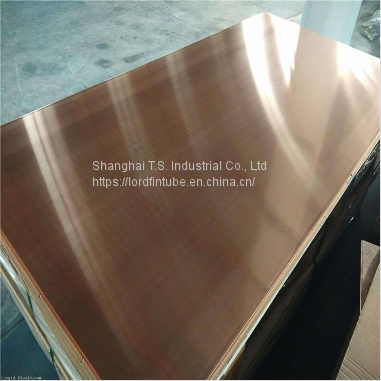

Specifications of Copper Sheet / Plate:
- Specifications: DIN 1787, DIN 17670, ASTM B152M-09, ASTM B248M-07, BS 2870:1980, BS 2875:1969, BS EN 1652:1998
- Standard: ASTM, AISI, BS, JIS, GB, etc.
- Thickness: from 0.15mm to 8.0mm, all available
- Width: from 10mm to 1000mm, all available
- Cu (min): 99.90%
- Temper: O, 1/4H, 1/2H, H, etc.
- Finish: Bright, Plating, etc.
- Grade: C1020, C1100, C1201, C1220, etc.
- Tensile strength: >20 Kgf/mm²
- Elongation: >15
Copper has good electrical conductivity, thermal conductivity, corrosion resistance, and processing properties, and can be welded and brazed. Contains less conductive, thermal conductivity impurities, trace oxygen on the conductivity, thermal conductivity, and processing performance is not significant, but easy to cause "hydrogen disease", not suitable for high temperature (such as > 370℃) in the reducing atmosphere processing (annealing, welding, etc.) and use. Every year, 50% of copper is purified by electrolysis to pure copper, which is used in the electrical industry.
Chemical Composition (%)
Grade
| Cu+Ag
| Bi
| Sb
| As
| Fe
| Pb
| S
|
C1100
| 99.90%
| 0.001%
| 0.002%
| 0.002%
| 0.005%
| 0.005%
| 0.005%
|
Mechanical Properties
Temper
| Tensile Strength, min
| Elongation A50, min
| Hardness, min
|
（Rm/MPa）
| (%)
| (HV)
|
R220
| 220-260
| 33
| 45-65
|
R240
| 240-300
| 8
| 65-95
|
R290
| 290-360
| 4
| 90-110
|
R360
| 360
| 2
| 110
|
Physical Properties
Density, g/cm³
| 8.9
|
Electrical Conductivity, IACS%（20℃）
| 100
|
Modulus of Elasticity, Gpa
| 127
|
Thermal Conductivity, W/m*K
| 394
|
Coefficient of Thermal Expansion, (10-6/℃ 20/℃ -100/℃)
| 17.7
|
Features:
- Good electrical and thermal conductivity, corrosion resistance, and processability
- Can be welded and brazed
- Excellent electrical conductivity, thermal conductivity
Application:
Suitable for electric power, distillation, construction, chemical industry, gasket, electrical appliances, and other industries
