US$23,000.00-38,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Making Method of Parison
Extrusion-Blow Molding
Computerized
Computerized
Certification
CE, ISO9001:2008
After-sales Service
Life-Long
Extrusion System
Hard Gear Surface Decelerator + Japan Inverter
Auto Deflashing
Available
Output(Dry Cycle)
750 PC/Hr
Die Head Option
Single, Double, Tri-Head, Tetra-Head
Transparent Line
Available
Production Usage
Bottle, Toy, etc
Transport Package
Film Packing with Wooden Bottom
Specification
Max capacity 12L
Product Description

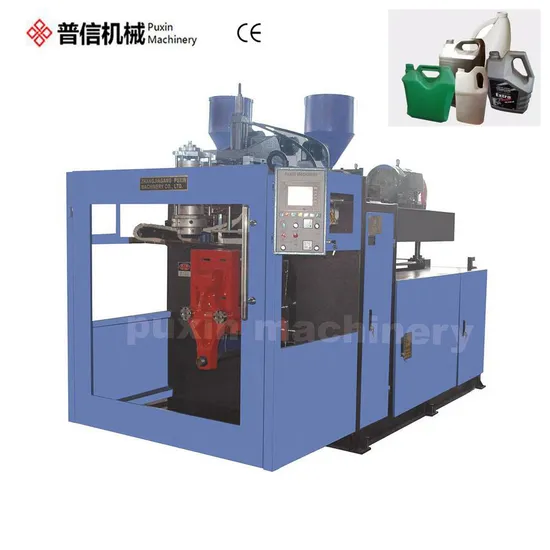

PXB70
5L - 12L Blow Molding Machine
Basic Equipment
| Extrusion System | Hard gear surface decelerator+Japan inverter |
| Die system | Center -incoming extrusion die with special steel |
| Hydraulic system | Japan hydraulic valve seal and proportional control |
| Control system | Japan PLC+Imported+PLC automatic temperature control model+Imported electrionic parts |
Configuration List
| PLC | MITSUBISHI | Japan |
| Touch Screen | HITECH | Taiwan |
| Inverter | MITSUBISHI | Japan |
| Power Supply | MEAN WELL | Taiwan |
| Relay | OMRON | Japan |
| Hydraulic Valves | YUKEN | Japan |
| Hydraulic Pump | YUKEN | Japan |
| Contactors | LS(LG) | Korea |
| Solid relay | FOTEK | Japan |
| Breaker | LS(LG) | Korea |
| Temperature Control Module | MITSUBISHI | Japan |
| Oil Sealing | DZ | Taiwan |
| Oil Tube | LIEBAO | Taiwan |
| Transducer | GEFRAN | Italy |
| Proximity Switch | SONON | China |
| Motor | SIEMENS | China |
Parameters
Specifications
|
| Material | | PE,PP, PVC, PA... |
| Max container capacity | L | 12 |
| Number of die | Set | 1, 2, 3, 4 |
| Output(dry cycle) | Pc/hr | 320 |
| Machine Dimension(LxWxH) | M | 4.5x3.5x2.9 |
| Total weight | T | 8.0 |
Clamping Unit
|
| Clamping force | KN | 95 |
| Platen opening stroke | mm | 200-600 |
| Platen size | mm | 550x460 |
| Max mould size(WxH) | mm | 550x430 |
| Mould thickness | mm | 210-330 |
Power
|
| Max drive | KW | 67 |
| Total power | KW | 78 |
| Fan power for screw | KW | 0.6 |
| Air pressure | MPA | 1.0 |
| Air consumption | M3/min | 0.9 |
| Average energy consumption | KW | 31 |
| Extruder unit |
| Screw diameter | mm | 70 |
| Screw L/D ratio | L/D | 24 |
| Melting capacity | Kg/hr | 80 |
| Number of heating zone | zone | 3 |
| Extruder heating power | KW | 14.2 |
| Extruder driving power | KW | 22 |
Die
|
| Number of heating zone | zone | 3 |
| Power of die heating | KW | 5.7 |
| Max die-pin diameter | mm | 180 |
| Center distance of double die | mm | 250 |
Delivery Time:
- No later than 40 days after receipt of the deposit
Training:
- We provide training service for two or three operating men for free (but the cost for trainer's board and lodging is not included).
Installation:
- The supplier will send one specialist to test run the machine until it is running in normal state.
Guarantee:
- Our guarantee is valid for a period of 12 months. If the malfunction caused of the machine's self quality, we will troubleshoot it for free.
Auxiliary Equipments:
- Auxiliary equipments for production line are available and optional, please kindly ask for quotation.
Our Factory:
Show Room:
>>
