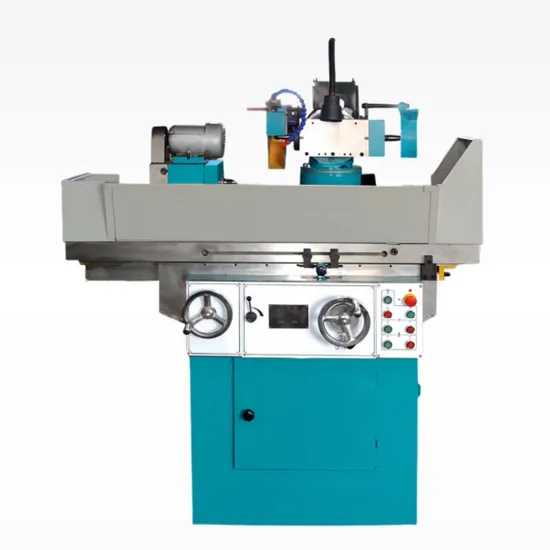

Surface Multi-Purpose Grinding Machine for Grinding Internal and External Cylindrical and Conical Workpieces

Product Description

Features
The machine has all functions of the universal external grinder and the universal tool and cutter grinding machine. It is designed so carefully that it has a nice appearance reasonable construction ,good perfomance and reliable accuracy The worktable can be reciprocated automatically droved by the hydraulics (speed stepless)or manual operation .
The operations are easy and convenient .it can perfomm either the "wet" or the "dry" grinding works .
The unique muitipurpose functions can carry out high quality grinding works for internal or extemal cylindrical taper workpiece.flat surface ,oblique plane and slot .
It is also used for sharpening various kingds of tool and cutters .such as milling cutters ,reamers pinion cutters ,lather and planning tool etc The special accessories with the machine provide to the users for easy operation
Specification Parameter

Item	Unit	MG6025K	2M9125C	MG6025K
Max.Swing diameter overtable	mm	250	250	250
Distance between front and rear centers	mm	650	630	630
Table longitudinal traverse	mm	400	400	400
Working surface of table	mm	940*135	940*135	940*135
Max.swivel of wheelhead in horizontal plane	°	360	360	360
Max.swivel of wheelhead in vertical plane	°	±15	±15	±15
Vertical traverse of wheelhead	mm	230	210	230
Cross traverse of table	mm	230	210	230
Grinding spindle speed	r/min	7600	3000/5600	7600
Max.swivel of workhead in horizontal plane	°	360	360	360
Drive motor power	kw	0.45/0.6	1.1	0.45/0.6
Net weight	kg	1000	1150	1000
Machine overall dimension	mm	1350/1275/1250	1350/1340/1300	1350/1270/1250

Dalian Haidi Machinery Co.,Ltd is a professional manufacturer that specializes in the development, research and production of single-column vertical lathe, double-column vertical lathe, horizontal lathe, radial drilling machine, slotting machine, boring-milling machine, machining center, customized special machine tool, and other equipment. The researched products by our company have such advantages as a great variety, complete specification, advanced technology and outstanding quality.

Our company, founded in June 2007, has a registered capital of RMB 60 million Yuan and covers a building area of 30,000 square meters. Now we have more than 200 staff members, including 11 senior engineers, 8 senior managerial staff,over 160 technical workers.

Our own casting factory was established in 1983 and has an annual output of over 20,000 tons. Our company is the largest enterprise that specializes in the casting of machine tool in southern Liaoning.In the meantime, it has offered great support to speed up our company's product research and production and made great contribution to making sure products are supplied to customers in the shortest duration.

Our company follows the principle of "independent innovation, govern enterprise by good virtue and prosper enterprise by good faith". We shall work hard persistently to make innovation and breakthrough and strive to become a first-rate enterprise. We would like to work hand in hand with all our friends toward a brilliant future.
Exhibition Photos
Customer Visit
FAQ

---
