Ongrid Offgrid Home Solar Generator Kit Solar Power System 5kw 7kw 10kw 20kw Home Solar Energy Power System with 10kwh 15kwh 20kwh LiFePO4 Battery

Product Description

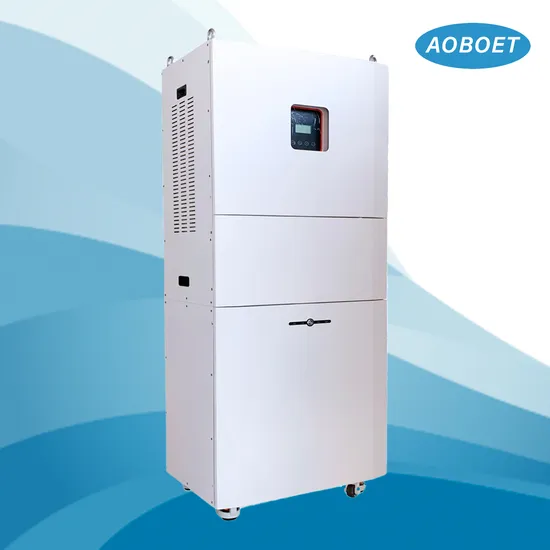

10kWh Solar Hybrid Generator / Hybrid Lithium ESS
AOBOET10kWh Solar Hybrid Generator the combination of battery, inverter and charger. Our Solar generator is plug and play, what you only need between the solar panels and load is our production.The generator also means the solar energy storage system.
Our solar lithium ESS is hybrid, this means it supports on grid model andoff grid model. As a result, there is no waste of energy there. And our product can also choose the priority of main and solar.
The most necessary thing of solar generator is the lithium battery. The warranty of our product is 5+5 years, and the lifespan of our battery is more than 15 years (daily cycle). Our lithium battery is scaleable to get high power,and support in series and in parallel. Intelligent BMS support APP remote battery management.
Our batteries are compatible with inverters of various brands, such as Growatt, Solis, Deye, LuxPower,Megarevo etc.

Features of Aoboet Solar Hybrid Generator

Optional Solar Components
Solar Panel	Solar Bracket
Solar Cable	MC4 Connector
Solar Combiner	Circuit Breaker

More details about Aoboet Hybrid Solar Generator

Specification
On Grid AC Output
Rate AC Output Power	5KW
AC Output Voltage	230Vac(single phase)
Max Output Current	36.5A
PV Input
PV input power	12kw
MPPT number	4
PV voltage range	350V/85V - 500V
MPPT voltage range	120V-500V
Battery
Battery Capacity	10kWh
Nominal Voltage	51.2VDC
Voltage range	48-56DC
Nominal charge/discharge power	5KW
Efficiency	>97%
Peak power(only discharging)	15KW for 3S
Max charging voltage	57 . 6 V
General Data
Operation Temperature range	-25 ~+60°C
environment humidity	0-95%
Altitude	0-4000M (over 2000M derating)
Weight	190kg
Dimension(W x H x D) mm	650*1770*460
Cooling	Fan Cooling
Noise(dB)	<29dB
Display	LCD
Communication	Modbus, RS485, WIFI,4G

Optional Solar Components
Solar Panel	Solar Bracket
Solar Cable	MC4 Connector
Solar Combiner	Circuit Breaker

Different household loading driven by Aoboet Lithium ESS

---
