Heavy Cutting CNC Vertical Machining Center

Product Description

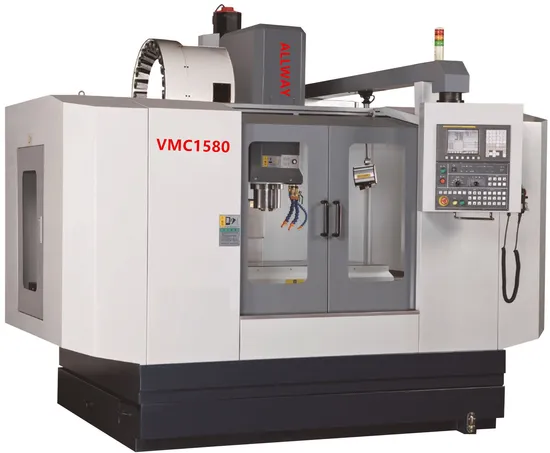

VMC1580 VMC1890 heavy type CNC milling machine tool with 8000rpm spindle speed
Main configuration & accessories:
1. Resin sand casting, Meehanite HT-300;
2. X, Y, Z rails adopt stainless steel telescopic cover;
3. Roller type linear guideway from Taiwan
4. Ball lead screw from Taiwan
5. Can choose belt driven spindle or direct driven spindle;
6. Taiwan pneumatic components;
7. Taiwan ATC, umbrella type and disc type both are available;
8. Import bearings for leadsrews;
9. Import coupling;
10. Headstock Nitrogen balance system as optional;
11. Full enclosed cover;
12. Rigid tapping;
13. Spindle center ring blast;
14. Work lamp;
15. Pilot lamp;
16. USB interface and ethernet interface;
17. Manual pulse generator (MPG);
18. Centralized automatic lubrication system.
19. Cooling and flushing system.
20. Heat exchanger for electrical cabinet ;
21. Leveling blocks & bolts;
22. Air gun+Water gun
23. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR,etc.
Technical parameter:

Item	Unit	VMC1580	VMC1890
Capacity
X axis travel	mm	1500	1800
Y axis travel	mm	800	900
Z axis travel	mm	700	800
Spindle nose to worktable	mm	155-855	150-950
Spindle center to column	mm	855	965
Leadscrew/Guideway size
Leadscrew diameter	mm	50	55
Linear guideway width	mm	55/45/55	55/55/55
Worktable size
Worktable Length	mm	1600	2000
Worktable width	mm	800	900
T slot qty-width*distance	mm	7-22*110	7-22*120
Max loading capacity	kg	1500	2000
Spindle
Spindle speed	rpm	8000/Belt	8000/Belt
Spindle motor power	kw	15/18.5	15/18.5
Spindle tork	Nm	70	70
Spindle taper		BT40	BT50
Feeding system
Fast moving speed (X/Y/Z)	m/min	30/30/24	30/30/24
Cutting speed	mm/min	1-10000	1-10000
Feed motor power	kw	4.5/4.5/4.5	4.5/4.5/4.5
X/Y/Z Axsis motor torque	Nm	37/37/37	37/37/37
Tool Magazine
Capacity	pcs	Disc/24	Disc/24
Max tool diameter	mm	120	200
Max tool weight	kg	8	18
Max tool length	mm	300	300
Tool change time (TT)		2.33	2.91
Accuracy
Positioning accuracy	mm	0.008	0.008
Repeat accuracy	mm	0.005	0.005
Machine dimensions
Length	mm	4200	4300
Width	mm	2800	3100
Height	mm	3300	3500
Weight	kg	11000	14000

Standard Accessories
Standard Accessories:
Fanuc 0i MF Plus(5) control system; X/Y/Z axes: Fanuc servo drive motor; Belt type 8000 rpm spindle from Taiwan ; 24 tools Disc type Magazine from Taiwan; 3-Axis Roller linear guideway from Taiwan Hiwin or PMI; Ball leadscrew from Taiwan Hiwin or PMI; Delixi electrical components in cabinet; Safety front door with switch; Automatic chip conveyor & chip bucket (Chain type); High pressure chip flushing system; MPG with emergency stop; USB interface; Rigid tapping; Full closed cover; Automatic lubrication; Coolant system; Work lamp; Tri-color indication lamp; Air gun+Water gun; Heat exchanger in cabinet; Telescopic cover for guide ways; Basic installation sets; English Manual; Tool and toolbox; Auto power off function M30; Optional accessories
Optional accessories:
Direct driven spindle from Taiwan with 8000 rpmSpindle oil coolantShneider electrical componentsAir conditioner for electricity cabinetNitrogen balance cylinder Oil skimmerAutomatic chip conveyor (Spiral type)Tool setter TS27R , brand RenishawWorkpiece measurement OMP60,Brand RenishawCTS 20Bar NSK Bearings

---
