Thermal Break Assembly Knurling Machine with Insertion

Product Description

Thermal Break Assembly Knurling Machine with Insertion
Machine feature:
The machine mainly rolls the broken aluminum profile on the inner side of the notch of the heat insulation strip or the plastic
profile, and increases the friction of the bridge aluminum profile and the heat insulation strip, and is equipped with automatic
clamping pneumatics. The device can realize the "work of wearing the strip while opening the teeth".
Adopt AC frequency conversion speed regulation, carry out hobbing, speed stepless speed control;
Transmission mode, drive motor + aluminum alloy casing worm gear reducer + spindle box to drive the gear cutter to achieve
precise tooth opening; imported linear ball guide, frequency converter, reducer.
It can realize fully automatic open-tooth wear-through operation; the whole machine is spray-painted, beautiful and durable;
Parameter:

Model	CLKC-01
Input power	1.5kw
Power supply	380V 50HZ
Feeding speed	0-90m/min
Air pressure	0.5-0.8MPa
Process profile section (W*H)	Max. 260*210mm
Machine dimension (L*W*H)	1000x1100x1550mm
Weight	800kg

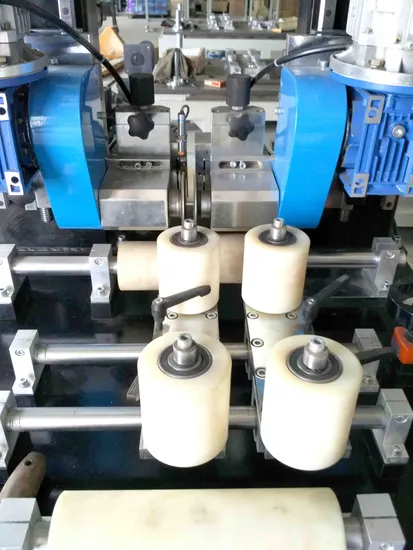

Machine details:
1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.
2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can dispatch our engineers to repair your machines
3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
All of our engineers have passport.
4. If I make Aluminum window and door, how many basic machines do i need?
1).double head cutting saw
2).Lock hole copy milling machine
3).End milling machine
4).Automatic Corner connector automatic cutting saw
5).Single head Corner combining machine

---
