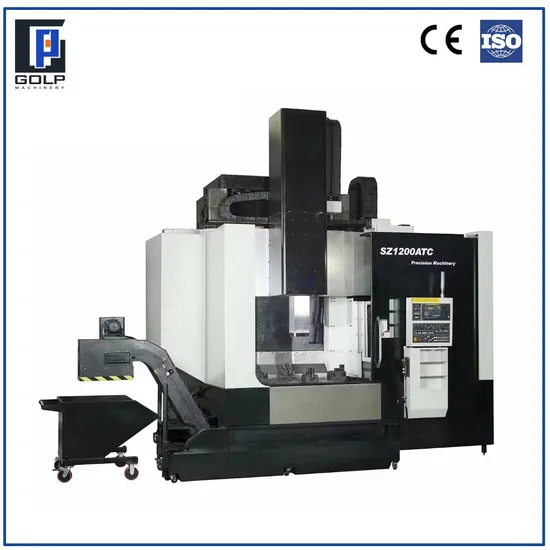

Max Dia1250mm Vertical Lathe Machine with Fanuc System for Chucked Components

Product Description

CNC Large-scale Vertical Lathe Series: Vertical lathes are capable of machining parts with diameters ranging from 1 to 3 meters.
Features
ΔThe workbench adopts TIMKEN cross roller bearings from US to ensure that the spindle has high radial and axial bearing capacity at high and low speed, so as to achieve high precision,
low noise and durability.
Δ The X-axis adopts wide hard rail contact surface, and the sliding contact surface is treated with Turcite B scraping process to obtain a sliding table group with high precision and low friction.
Δ Designed with a lifting crossbeam and hydraulic locking mechanism, it is easy to operate and has strong maneuverability in machining range as well as a simple structure.
ΔFull Servo 12T BT50 Tool Magazine: Accurate positioning and errorfree tool changing; the tool magazine is driven by a servo motor, with fast positioning and high torque;There are four
types of tool positions (optional):24,32,48 and 60.
Composite Function: Turning, Drilling, Milling and Grinding...

Standard machinery specifica		Unit	SZ1200ATC
Machinery capability/capacity
Discface diameter		mm	ø1250
Maximum rotation diameter		mm	ø1600
Maximum cutting diameter		mm	ø1400
Maximum cutting height		mm	1200
Maxumum weight of machined object		kg	5000
Amount of movement
Left and right(X-axis)stroke		mm	‐600,+875
Up and down (Z-axis)stroke		mm	900
Crossbeam up/down stroke		mm	750
Spindle
Spindle speed	Low gear	rpm	1~108
	High gear	rpm	108~350
#2Spindle speed	Low gear	rpm
	High gear	rpm
Maximum torque of spindle		N.m(kgf-m)	8180(834)
Feed speed
X-axis fast feed		m/min	12
Z-axis fast feed		m/min	10
Cutting feed		mm/min	1~2000
Manual feed		mm/min	0~6
Automatic tool change device
Number of tool positions			12 tool positions
Shank type		7/24taperBT-50	7/24 taper BT-50
Maximum tool size		mm	2800W×150T×400L
Maximum tool weight		kg	50
Maximum tool magazine capacity		kg	600
Tool change time(tool to tool)		Sec	40
Spindle metor
(FANUC)Spindle motor(FANUC)		kw	37/45(α40)
#2 spindle motor		kw
X-axis servo motor		kw	6(α40i)
Z-axis servo motor		kw	6(α40iβ)
CF-axis servo motor		kw
Motor for cutting fluid pump		kw	1.5
(SIEMENS)Spindle motor(SIEMENS)		kw	37/51(1PH7167)
#2 spindle motor		kw
X-axis servo motor		kw	7.7(1FK7105)
Z-axis servo motor		kw	7.7(1FK7105)
CF-axis servo motor		kw
Motor for cutting fluid pump		kw	1.5
Tank capacity
Hydraulic tank		L	130
Cutting fluid tank		L	600
Lubricating oil tank		L	4.6
Power specifications		AC220±10%.60Hz±5Hz
Power demand		KVA	65
Machine tool dimennsions(L×W×H)		mm	5050×4170×4760
Machine weight approximately		kg	33,000
Accuracy		mm	Positioning accuracy:±0.007/500,repeated accueracy:±0.005,C-axis positioning accuracy:±7.5"/360°,C-axis repeated accueracy:±5"

ΔThe product is subject to design changes without prior natice.
HIGH STABILITY OF THE ARCHITECTURE
AUTOMATIC TOOL CHANGE SYSTEM
PROCESS INSTANCE: Motor Base, housing, gearring,gear, motor shell, bearing ring, valve body...
You can click on the image above for details.
WUXI GOLP CNC MACHINERY CO.,Ltd is located in Wuxi--the core location of the Changjiang Delta which is the most dynamic economy area in China. We are a new brand company specializing in the CNC machine tool industry. The company is mainly engaged in Die-casting machine, CNC Punching machines, Powder compacting machine and other new intelligent machine and related supporting products. The company adheres to the business philosophy --Professional quality, Credibility first, Customer first, and is committed to the development goal of becoming an important member of the global market in the field of intelligent machines.

Q: What are your normal lead times?
A: Normally, 30 to 60 days
Q: What kind of package do you offer?
A: Standard wooden case packing
Q: Do you have certification of your machine?
A: CE certificate
Q: How about the warranty service?
A: 24 months
Q: How about the installation and commissioning?
A: we will enclose the production specification with the machine, and we could provide the video online to you, and our engineers are available to debug machinery overseas.
Q: How to select the suitable machine?
A: Pls tell us the machine you need, Includes drawings, specifications and other requirements.
Q: How to do it if we meet the issue during the operation?
A: We provide completely after sales service, and our engineers are available to service machinery overseas.
Q: If we want to learn how to operate the machine, Can you provide it?
A: Yes, we have special service team which will offer you professional guidance.

---
