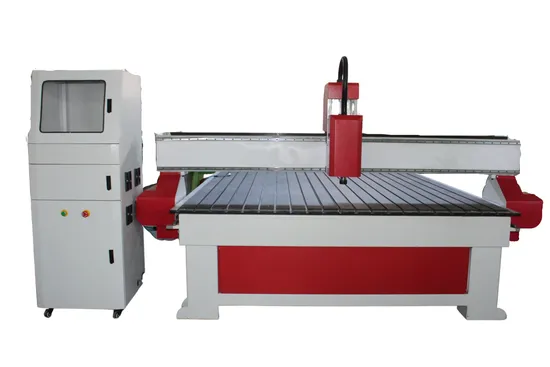

China 3 Axis 1325/1530/1525 CNC Router for Wood/Woodworking/Wooden/Acrylic/Plywood/PVC/MDF Engraving Cutting

Product Description

Product Description
Product Parameters

Dimension	3100*1850*1650
Platform size	1500*3000
Work area	1300*2500*200
Travelling speed	20m/min(MAX)
Working speed	12m/min(MAX)
Working voltage	AC220V(Optional 380V)
Spindle power	Water cooled 3.2KW-24000RPM
Device architecture	One molding process,space saving cabinet (380V for the normal external cabinet)high structural stability ,high precision and small deformation
Driving system	XYZ: 86 high torque stepper drive motor and drive
Rack and pinion	The new 1.2m alloy hardened helical gear rack + alloy hardened helical gear rack
Guide Rails	Taiwan Original 20 guide rails +Taiwan TBI 2510 ball screw
Operating system	Weihong
Platform structure	Aluminum profile + fixture
Electrical accessories	Omron, Chint
Inverter	Best
Power cable	Shanghai customized high-soft high-speed shielding cable, anti-interference and anti-breakage
Lubrication system	Oil pump centralized lubrication control
Security system	Overtravel protection, electrical protection etc.
Dust collector	2.2KW vacuum cleaner,Vacuum pipe,Vacuum hood
Fastenings	The transmission parts are fixed with high strength 12.9 class screws, and the sheet metal is fixed with 304 stainless steel screws
Accuracy	Each axis is fixed rigidly, and the locating pin is added to the precision part
Quality Control	Incoming material, process, delivery full control, 24 hours machine test

Detailed Photos
ADVANTAGE 1
Stablility Structure
High Presciison
Break the traditional installation mode

Dispersed Holding Capacity
Move more stable,
long lifetime,
protect the slide bolock

Easy To Maintain
Very convenient to change guidie rail&slide block
ADVANTAGE 2
Z Axis Direct Connection


The force is directly generated to macimaize the Z-axis power
Continuous screw,more effective protection form deformation,higher precision

Completely solve the hidden danger of belt

ADVANTAGE 3
Gantry Positioning

Adjustable diagonal Adjustable diagonal,no impact on changing place

Effective shock aborption
Do not addect the accuracy of the machine due ti external forces such as collisions

Easy to maintain
Avoid re-positioning accuracy reduction after overhaul

Application
Mainly used for batch business production, such as coffin, relief and assembling wooden toy production, carved furniture inlay art and decoration, furniture, decoration, interior doors, cabinet doors , decorative woodwork, wooden crafts, screen, three - dimensional wave board, advertising, precision instrument shell with industry and trade, musical instruments and other industries, plastics, foam batch processing, and so on.
Feature
1.Solid machine bed, high steel stability, high precision. Long using life
2.Y axis is with double motor driving, best configurations, stable process
3.Adopting high precision rack transmission, high precision &speed
4.SpeciaT multi-spindle designed, spindle quantity & power can be optional, the distance between spindles can be easily adjusted. Another Type
Company Profile
FAQ
1. This is the first time I buy the machine, is it easy to operate?
A: We can provide the operation manual or video for guiding. If it is hard for you learning, we can also help you by "Team
viewer" online, with telephone or Skype explain.
2. ARE YOU TRADING COMPANY OR MANUFACTURER ?
A: We are factory.
3. Can I visit your factory?
A: Yes! We greatly welcome customers to visit our factory!
4. What is your MOQ?
A: Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you. After sale-service
1.24 hours online by Ali Trademanager, Skype, Email, QQ, Whatsapp or telephone.
2.We will provide free training, free maintenance, free technical upgrading,
3.We accept the ODM, OEM
4.Oversea agents wanted, if any interest, pls let me know

---
