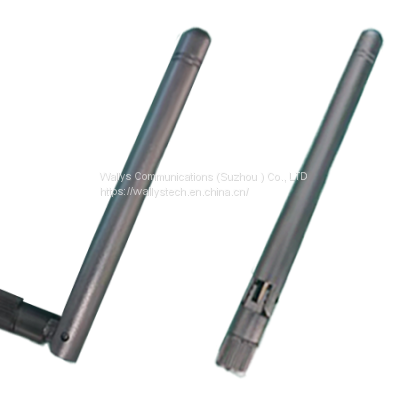

DRA24126ESBE DRA24126ESBE Wi-Fi 6E，2.4~2.5&5.15~7.15GHz ，Dipole Antenna

Product Details

Product Description

Product Description
DRA24126ESBE DRA24126ESBE Wi-Fi 6E，2.4~2.5&5.15~7.15GHz ，Dipole Antenna
1. Feature
*External type dipole antenna
* 2.4~2.5&5.15~7.15GHz of frequency
* Plastic rod of Black
* RoHS compliance
2. Application
* Wi-Fi 6E Wireless Communication
* WLAN device, WLAN Router, e.g., AP,PIC Wireless Card
3. Description
Suzhou Wallys Communication Co., Ltd, this miniature antenna is designed for Wi-Fi 6E applications
and can be easily built-in portable devices for SMA Plug. It has excellent stability and sensitivity to
consistently provide high signal reception efficiency
4. General Data

Symbol	Parameter
Product Name	Wi-Fi 6E Dipole Antenna
Part No.	DRA24126ESBE
Frequency	2.4~2.5&5.15~7.15GHz
V.S.W.R	2.4-1.92max 5.85-2.1max
Gain（dBi）	2.45GHz@3.0dBi 5.85GHz@4.0dBi
Polarization	Linear,Vertical
Storage Temp	-10℃~+70℃
Operating Temperature	-10℃~+60℃
Impedance with Matching	50 Ω
Weight	6.5 g
Antenna Type	SMA Plug
Dimension	L108.4X φ 11.0 (mm)

Wallys Communications (Suzhou ) Co., LTD,
With over 15 years of experience in wireless industry and penetrating market olfaction, Wallys has designed and manufactured many high quality and cost-effective routerboards and wireless network cards
In the complex market, Wallys products stand out and are affirmed by partners. From 802.11 a - ax, Wallys always keeps up with the most cutting-edge wireless technology, aimed to help customers take the preemptive opportunities to occupy the market and lead a win-win cooperation.
