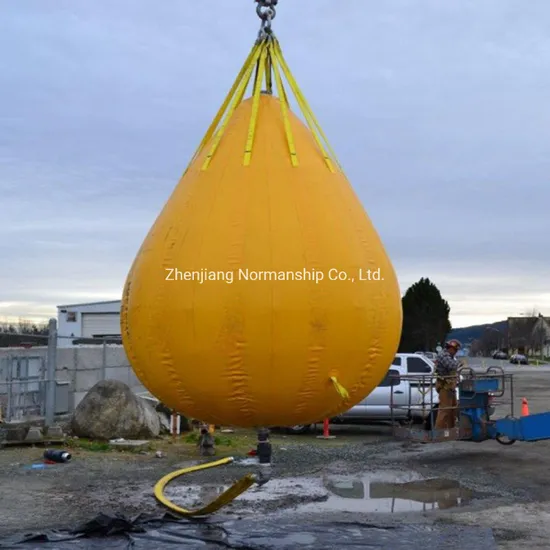

Crane &Davit Load Test Water Weight Bags

Product Description

Crane &Davit Load Test Water Weight Bags
Specifications
Water filled weight bags are used for the proof load testing for the crane, davits, derricks, hoist and other lifting equipment.
Crane &Davit Load Test Water Weight Bags is designed for the proof loading test for the lifting equipments and structures that request proof load test when it's newly finished, or periodic check or maintenance, such as cranes, beams, davits, winches, hoists, drilling derricks, bridge, platforms, walkways, and so on in marine, offshore, workshop, port, vessels, and other industry sector. This water filled weight bags provide one kind innovative testing solution with the advantages of Safety, Economy, Convenience, High Efficiency.
Crane &Davit Load Test Water Weight Bag are made from heavy duty fabrics, equipped with all necessary fill/drain hose and valves,Master Links, load shackles and riggings, lifting belts, and incorporating with some innovative design. Water pumps, water meters, manifolds, load cell and its shackles, rigging hardware, lifting beams also can be supplied upon request.

Features and Advantages of Load Test Water Bags:
- Made from heavy duty UV resistance PVC coated fabrics
- Heavy duty webbing harness terminates with single steel lifting ring
- Easy to handle and operate to enhance the work efficiency
- Complete with all accessories and fill/drain valves, quick couplings
- 6:1 safety factor verified for type test
- Multi size are available for unlimited variants of test weight
- Delivery ready for use
- CCS " Certificate of Type Approval" and BV third Party Certificate
- All water bags are Manufactured in accordance with ISO 9001 Quality Management Standard

Model	Capacity	Volume(m3)	Height	Max. diameter	Weight	Packing size (m3)	Material: PVC
WB/FW-0.25	250kg	0.25	1.2	0.8	8kg	0.6*0.6*0.5	1300g
WB/FW -0.5	500kg	0.5	1.5	1	10kg		1300g
WB/FW -1	1000kg	1	1.8	1.2	19kg		1300g
WB/FW -2	2000kg	2	2.3	1.5	22kg		1300g
WB/FW -3	3000kg	3	2.7	1.8	28kg		1300g
WB/FW -4	4000kg	4	2.9	1.9	52kg	0.7*0.8*0.6	1300g
WB/FW -5	5000kg	5	3.3	2.3	67kg		1300g
WB/FW -6	6000kg	6	3.4	2.4	84kg		1300g
WB/FW -8	8000kg	8	3.6	2.5	104kg		1300g
WB/FW -10	10000kg	10	3.9	2.7	108kg	1.02*1.02*0.7	1300g
WB/FW -13	13000kg	13	4.2	2.9	150kg		1300g
WB/FW-15	15000kg	15	4.4	3	150kg		1300g
WB/FW-20	20000kg	20	6	3.5	156kg	1.2*1.2*1	1300g
WB/FW-25	25000kg	25	6.1	3.9	190kg		1300g/1580g
WB/FW-30	30000kg	30	6.5	4.1	220kg	1.4*1.2*1	1580g
WB/FW-35	35000kg	35	6.8	4.3	240kg		1580g
WB/FW-40	40000kg	40	7.4	4.5	260kg		1580g
WB/FW-45	45000kg	45	7.5	4.7	290kg	1.8*1.2*1	1580g
WB/FW-50	50000kg	50	7.7	5.1	340kg		1580g

---
