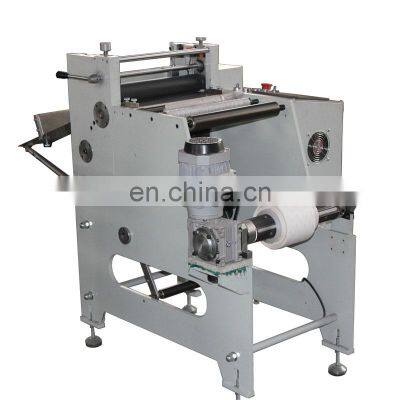

Paper roll to sheet cutting machine / paper cutter / paper sheeter

Product Description

Product Description
Paper roll to sheet cutting machine / paper cutter / paper sheeter Functional Characteristics:1.DELTA servo motor pull the material,high precision.2.MITSUBISHI PLC with touch screen to set any length,quantity,speed. 3.3 inch inflatable shaft for unwinding.4.14mm thickness steel wall make machine run stable.5.Pulling roller coat thick PU rubber and won't scratch the material.6.Polished and anodized aluminum guiding roller,very smooth and never harm the material.7.Long service life of the SKD11 cutting blade and cut the sheet edge smoothly. 8.Other standard machine:500mm,600mm,800mm,1000mm,1400mm. Purpose:This machine can cut flexible materials from roll to sheet,such as plastic,paper,label,film,foam,aluminum foil etc. Technical Data: ModelDP-360Max Feeding Width ( mm )360Max unwind roll diameter(mm )600Max unwind roll weight(kg)40Unwind shaft diameter3 inch or 6 inchCut 450mm speed ( times/minute )40 Total Power1.5kwPLCMITSUBISHIServo Motor Servo Driver DELTA Precision ( mm )±0.10 Voltage380V 50HZ ModelDP-500DP-600DP-800DP-1000DP-1400Max Feeding Width ( mm )50060080010001400Max unwind roll diameter(mm )600600800900800Max unwind roll weight(kg)404050-6050-6050-60Unwind shaft diameter3 inch or 6 inch3 inch or 6 inch3 inch or 6 inch3 inch or 6 inch3 inch or 6 inchspeed ( times/minute )70 (Cut 320mm)50-80 (Cut 600mm)50-80 (Cut 600mm)50-80 (Cut 600mm)80 (Cut 100mm)Total Power1.5kw2.5kw3kw3kw4kwPLCMITSUBISHIMITSUBISHIMITSUBISHIMITSUBISHIMITSUBISHIServo Motor Servo Driver DELTA DELTA DELTA DELTA DELTA Precision ( mm )±0.10 ±0.10±0.10 ±0.10 ±0.10Voltage380V 50HZ380V 50HZ380V 50HZ380V 50HZ380V 50HZ Electrical listing:Touch ScreenKUNLUNTONGTAIMade in ChinaProgrammable ControllerMITSUBISHIMade in JapanServo DriverDeltaMade in TaiwanServo MotorDeltaMade in TaiwanMotor of cutting knifeSHENLIMade in ChinaAC ContactorCHNTMade in ChinaSolid State Relay 20AGOLD ELECTRICAL CONTROL Made in China With standard MITSUBISHI PLC and DELTA servo driver &motor,other brands is optional. Swing arm to control the feeding tension.On the touch screen,you can set any length,quantity,speed ,etc.

---
