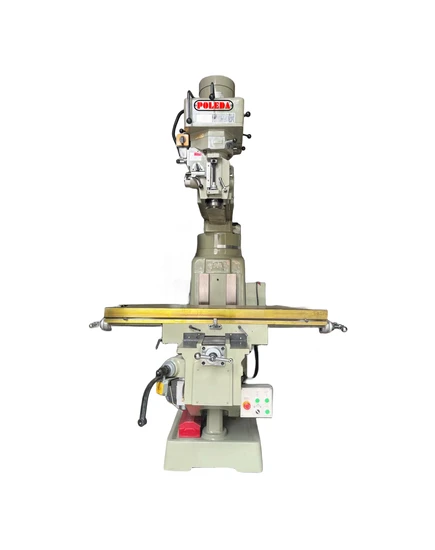

Poleda 5m/5s Universal Vertical Rocker Turret Milling Machine with High-Performance Motor, China

Product Description

Introducing the POLEDA 5m/5s Universal Vertical Rocker Turret Milling Machine, a pinnacle of engineering and precision. Proudly fashioned in China, this vertical metal turret milling machine stands unmatched in professionalism, continually striving for excellence. At Dongguan Poleda Precision Machinery Co., Ltd., we believe in constant enhancement-there is no best, only better. Discover the power and precision of the POLEDA 5m/5s Universal Vertical Rocker Turret Milling Machine. Engineered for unparalleled performance, this vertical metal turret milling machine sets new standards in the industry.
Our POLEDA 5m/5s Universal Vertical Rocker Turret Milling Machine, made in China, epitomizes our commitment to professional excellence and innovation in universal milling technology.
At Dongguan Poleda Precision Machinery Co., Ltd., we uphold the philosophy that there is no best, only better. Constant improvement drives us to deliver top-tier machinery, like the POLEDA 5m/5s Universal Vertical Rocker Turret Milling Machine.
Product Description
Product Parameters
Product Introduction
The Turret Milling Machine, also known as the Rocker Arm Milling Machine, Rocker Arm Milling, or Universal Milling, is ingeniously designed with a compact structure and small footprint. Highly flexible, the machine's milling head swivels 90 degrees, rotates 45 degrees forward and backward, and the rocker arm extends while offering a full 360-degree horizontal rotation. These features significantly enhance the machine's effective working range.
Construction
Crafted from high-grade cast iron, the body of the Universal Radial Milling Machine boasts exceptional precision and longevity, thanks to artificial aging treatment. The lifting platform features rectangular guide rails with multiple contact surfaces and robust feet. High-frequency treatment and fine grinding have plastinated the slide, ensuring excellent motion accuracy and durability. The spindle, made from chrome-molybdenum alloy, is equipped with precision angular contact bearings and undergoes tempering and fine grinding to deliver strong cutting force and high accuracy.
Application
The Turret Milling Machine serves as a versatile and lightweight metal-cutting apparatus, capable of vertical and horizontal milling. It efficiently handles the milling of flat surfaces, inclined planes, grooves, and splines on medium and small parts, finding widespread use across machining, molding, instrumentation, and other industries.
Mechanical Characteristics of the Turret Milling Machine:
Constructed from m Mihanna cast iron, the machine ensures superior rigidity, deformation resistance, and stability.
The spindle, built from chrome-molybdenum alloy, undergoes tempering, heat treatment, and grinding, paired with precision bearings for formidable cutting force and impeccable precision.
The Milling Head Gear Box, also crafted from cast iron, offers excellent rigidity, minimal deformation, and greater weight for more precise cutting. This ensures the milling head's durability.
The three-axis screw's screw cap is made from advanced phosphorus bronze, providing exceptional wear resistance and a prolonged service life.
The XY axis slide, post high-wave heat treatment, exhibits excellent wear resistance, enhancing longevity. The XY axis interface features an imported wear-resistant plate, ensuring ease of operation and minimal wear rate.
Equipped with a lubrication system, the machine guarantees uniform oil distribution across points, ensuring smooth slide movement.
The machine is 100 kg heavier than similar products, providing added stability.
Powered by a robust 5hp motor, with a high-rigidity and precision NT40 spindle, this machine is ideal for handling large parts and heavy-duty cutting operations.

Product Name	Milling machine
Product model	5M/5S/5HG
Product technical parameters
dimension	Table size	1370*305MM
journey	Left and right stroke(X)	800MM
	Front and rear stroke(Y)	380MM
	Up and down stroke(Z)	380MM
	Arm reach	600MM
	Distance from spindle end face to table surface	100-480MM
	Table bearing	350KG
Principal axis coefficient	Spindle taper	NT40
	Spindle speed	80-5440RPM(16-speed)
	Spindle travel	127MM
	Spindle horse power	5HP
Milling head	Milling head tilt Angle	45° front and back
Lead screw	X/Y/Z-axis screw diameter	Tr32/Tr32/Tr35MM
	Three-axis lead screw pitch	5MM
	Machine size (L * W * H)(MM)	1750*1700*2200MM
	Approximate machine weight	1580kgs
disposition	Accessories name	quantity
Standard parts for machine tools	1,Hand oil pump	1
	2,Work light	1
	3,Organ board + protective glue	1
	4,Lever	1
	5,Tools and toolboxes	1
	6,Operating instruction	1

Detailed Photos
Our Advantages
Certifications

FAQ
Frequently Asked Questions (FAQ)
Question 1.What is the MOQ for your production?
Answer: The Minimum Order Quantity (MOQ) depends on your requirements for color, logo, etc. For some standard items we have in stock, the MOQ is just 1 set.
Question 2.How do you ensure the quality of the products?
Answer: We have consistently prioritized maintaining a high level of quality. Our guiding principle is to providecustomers with superior quality, competitive prices, and exceptional service.
Question 3.What are the main products of your company?
Answer: We specialize in various types of machinery, including CNC Machines, Lathe Machines, Milling Machines, Grinding Machines, Vertical Machining Centers,Drilling Machines, Radial Drilling Machines, Sawing Machines, and more.
Question 4. What are your trade terms?
Answer:We accept Ex-works, FOB, CFR, and CIF terms.
Question 5.What are the Payment Terms?
Answer: T/T is accepted, with a 30% initial payment upon order and a 70% balance payment before shipment.
Question 6.What CNC systems do you use?
Answer: We use FANUC, SIEMENS, MITSUBISHI, SYNTEC, and HCN systems, depending on your preference.
Question 7.How can I choose the most suitable machines?
Answer: Send us your product drawings and application details, and we will recommend the most suitable machines for you.
Question 8.What kind of packaging do you offer?
Answer: Typically, we use plywood cases to ensure all goods are in excellent condition. Customized packaging is also available upon request.
Question 9.Can your plant do OEM?
Answer:Yes, we can provide both OEM and ODM services for any customer. Question 10.How about the warranty?
Answer: The warranty period is one year after delivery. Even after this period, we offer lifetime service for our machines.

---
