5lbs 10lbs 15lbs 20lbs DOT-3al Seamless Aluminum Alloy Gas Cylinder CO2 Fire Extinguisher

Product Description

Product Description
Technicial Specification

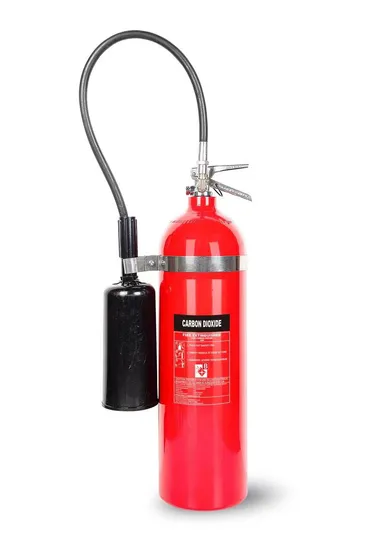

DOT-3AL CO2 FIRE EXTINGUISHER (ALUMINIUM-ALLOY)
No.	Type	Outside diameter(mm)	Test pressure (Bar)	Water Capacity(L)	Design wall thickness(mm)	Material	Weight (kg)	Extinguisher Weight (kg)	Packing Size (kg)	Pallet Packing	QTY/pallet
1	5LBS	133	3000	3.4	5.5	AA6061	4.1	6.4	190×145×480	1100×1100×1010	72
2	10LBS	175	3000	6.7	7.19		8.1	12.6	300×190×530	1140×1140×1100	40
3	15LBS	175	3000	10.02	7.19		9.9	16.7	300×190×705	1000×1000×1100	20
4	20LBS	203	3000	13.40	8.34		13.2	22.2	340×220×715	1040×1040×1020	16

DOT-3AL CYLINDER
DOT-3AL Seamless Aluminum Alloy Gas Cylinder
No.	Type	Outside diameter(mm)	Working pressure (Bar)	Test pressure (Bar)	Material	Bottom Type	Design wall thickness(mm)	Water Capacity(L)	Height (mm)	Weight (kg)	Certificate
1	133-3.0-124.1 5.24-183-1800	133 5.24in	124.1 1800PSI	206.9 3000PSI	AA6061	H	5.47 0.215in	3.0 183in3	340 13.4in	2.9 6.4lbs	DOT
2	133-3.4-124.1 5.24-207-1800							3.4 207in3	375 14.8in	3.1 6.8lbs
3	133-4.0-124.1 5.24-244-1800							4.0 244in3	430 16.9in	3.7 8.2lbs
4	175-5.0-124.1 6.89-305-1800	175 6.89in	124.1 1800PSI	206.9 3000PSI	AA6061	H	7.19 0.283in	5.0 305in3	345 13.6in	5.1 11.2lbs	DOT
5	175-6.7-124.1 6.89-408-1800							6.7 408in3	430 16.9in	6.0 13.2lbs
6	175-6.8-124.1 6.89-415-1800							6.8 415in3	435 17.1in	6.1 13.4lbs
7	175-10.03-124.1 6.89-612-1800							10.03 612in3	600 23.6in	7.9 17.4lbs
8	175-10.2-124.1 6.89-622-1800							10.2 622in3	610 24.0in	8.2 18.1lbs
9	203-10.0-124.1 8.0-610-1800	203 8.0in	124.1 1800PSI	206.9 3000PSI	AA6061	H	8.34 0.328in	10.0 610in3	475 18.7in	9.4 20.7lbs	DOT
10	203-13.4-124.1 8.0-818-1800							13.4 818in3	605 23.8in	11.2 24.7lbs
11	203-14.0-124.1 8.0-854-1800							14.0 854in3	630 24.8in	11.6 25.6lbs

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Company Profile
Shaoxing Ruiying High Pressure Vessel Co., Ltd. was one professional steel and aluminum gas cylinders manufacturer with the ability of research, development, sales and production capacity of 700000 pcs per year.

As an ISO-9001 certified manufacturer, products obtained PED/TPED CE certification, American DOT certification, German TUV safety certification and Australian market certification.
Customer satisfaction is our highest goal, quality is the most important principle guiding our work. Automated production equipment, professional inspection tools guarantee the safe and reliable product performance.
We will continue to enhance our competitive advantages with our "Excellent quality; diligent pursuit" philosophy through a position of strength, innovation, and partnership with our customers.
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
company culture
Cooperation and win-win make business more friendly and sustainable, caring and teaching for employees to experience love and responsibility.
FAQ
1.Min order quantity?
Q:What's your min order quantity?
A:100PCS
2.Delivery Time?
Q: What is the delivery time of the gas cylinders ?
A: 10Days to 30Days once deposit received and specifications confirmed about the cylinder.
3.Certification?
Q:What certificates do you provide for gas cylinders?
A:We are authorised by PED/ISO/ DOT/ GB / TPED standards.
4.Sample?
Q: How can I get the sample? What's the lead time?
A: Samples could be sent within two week, the lead time is 15-30 days.
5.Technical consultation ?
Q:Can you provide some techincal questions?
A:We would like to supply helpful solutions for all kinds of technical consultation,project design and market application.

---
