Product Details
Product Description
Product Description

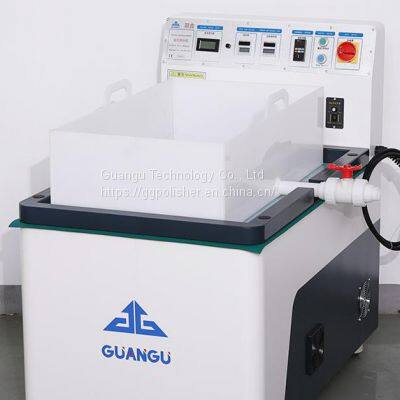

Guanguu magnetic polishing machine Name: GG8850 translation single magnetic field, basic information is as follows:
Dimensions: 1100*720*1088mm
Grinding groove size: 800*520mm(square bucket)
Power supply: AC380v(50Hz)16A
Motor power: 4KW*1
Equipment weight: 288KG
Grinding capacity: 20-30KG
Operation mode: positive and negative rotation and translation
Magnetic grinding steel needle: 8kg, made of imported SUS304 stainless steel, specification diameter: 0.2-2.00mm.
Lapping liquid: 50L
Motor speed: 1400 RPM
1 inverter control panel (Delta brand)
The operation process of magnetic polishing machine to handle surface problems of workpieces is very simple. Firstly, prepare the magnetic polishing machine and select the suitable grinding steel needle for the workpiece. Place the workpiece in the grinding groove and add a suitable polishing solution for the workpiece. Wait for 8-15 minutes for the workpiece to be polished, remove the workpiece and remove surface moisture.
The magnetic polishing machine has a significant effect on the surface treatment of workpieces, effectively removing surface defects and making the surface of workpieces smoother and smoother.
Workpieces usually require precision machining and polishing to ensure surface smoothness and dimensional accuracy to meet high-precision surface requirements.
>>
