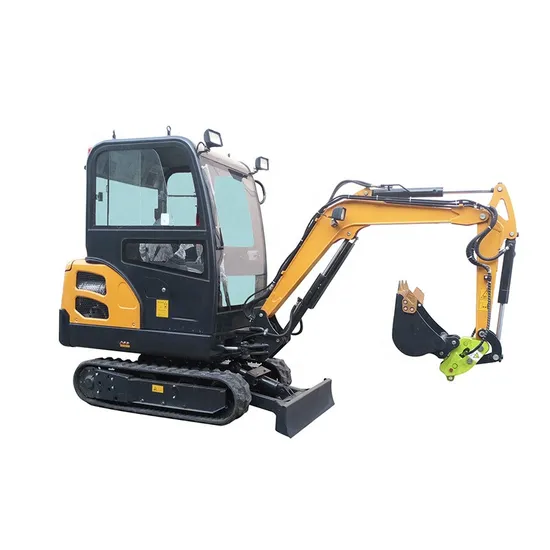

CE EPA Mini Construction Equipment Hydraulic Digger Crawler Excavators for Sale

Product Description

Product Overview
Features
1-KUBOTA D1105 engine , with EPA,14kw, Euro V
2-China brand pump
3-China brand valves
4-EATON brand slewing motor
5-EATON brand driving motor
6-Optional closed cabin
7-Hydraulic pilot servo operation system
8-Rubber track :230mm
9-Hydraulic quick hitch
10- Bucket capacity: 0.06m³

Product Parameters

Main Specifications			Overall Dimensions
Operating Weight	1800 kg		Overall Length*Width*Height	3725*990*2300 mm
Bucket Capacity	0.06 m³		Track Grounding Length	1250 mm
Bucket Width	450 mm		Track Shoe Width	230 mm
Boom Length	1823 mm		Track Gauge	740 mm
Arm Length	1130 mm		Min Ground Clerance	160 mm
Performance			Min Front Swing Radius	1120 mm
Swing Speed	10 rpm		Tail Swing Radius	1080 mm
Travel Speed	0-2.2Km/h		Dozer Blade Width	990 mm
Grade Ability	25 °		Operating Range
Ground Pressure	34 Kpa		Max Digging Radius	3920 mm
Bucket Digging Force	15.2 KN		Max Digging Depth	2140 mm
Arm Digging Force	8.7 KN		Max Digging Height	3330 mm
Max Traction Force	12.5 KN		Max Dumping Height	2440 mm
Engine			Boom Offset (Left/Right)	240/460 mm
Model	Kubota D1105, EURO 5, EPA		Boom Swing Angle L/R	73/47 °
Rated Power	19.7/2200 Kw/rpm		Dozer Blade Size Width*Height	990*210 mm
Max Torque	107.8 N.m/rpm		Dozer Blade Lift/Digging	228/218 mm
Displacement	1.642 L		Pump type	gear pump
Cylinders	3		Discharge	227L/min
Bore and Stroke	88*90 mm/85*90 mm		Working cylinder×number	110mm×2
Cooling Type	Water

Product Detailes
Workshop
Attachments
You can install more and more accessories to discover more functions of the mini excavator
Packaging & Shipping
If you need 1-3 units would be Wooden box, More than 4 units will loading by containerWithin 7 days we will ship your goods when we received the advance payment
Company Profile
Our factory mainly produce wheel excavators, crawler excavators, backhoe loaders and dump trucks since 1995, which have passed CE, ISO9001 certification. Our products have been exported to more than 50 countries and regions. We have agents in whole European countries, Australia, New Zealand, South Asia etc.
Below are our products list: 1) Wheel excavators: 5t - 12t; 2) Crawler excavator 0.8t -24t; 3) Backhoe loader: 6t, 7t. 4) Truck-mounted concrete pumps: 26m 33m5) Electrical kids excavator with our patents design.All of our products have CE/ ISO Certificate

---
