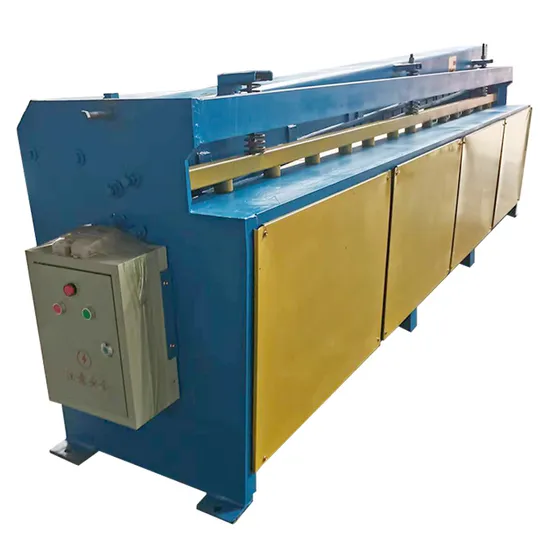

Electric Sheet Metal Shear Cutting Machine

Product Description

Product Description Electric Sheet Metal Shear Cutting Machine
This machine adopts all-steel welded structure, simple structure, simple operation, beautiful appearance, low energy consumption,gear transmission or reducer transmission, electromagnet can be installed, and remote control after foot switch, suitable for metallurgy, light industry, Machinery, hardware, etc. 0.1-1.5 mm ordinary steel plate processing and cutting, this machine tool uses 6CrW2Si high-alloy tool steel, the knife edge is durable.
This machine adopts all-steel welded structure, brake type lower transmission principle, integration of motor and cycloid reducer, self-contained brake device, chain transmission, no shearing and no power consumption, simple structure, simple operation and low energy consumption.
- Features for Metal Steel Sheet Cutting Shearing Machine 1,Electric shearing machine is used for the shear sheet metal in line, metal materials should be tensile strength of less than 450 N/mm2, non-metallic material including rubber, plastics,when cut hot plate temperature should below 50 °C, The machine can make only intermittent shear in full load, if tensile strength is higher , shear thickness should be reduced.
2, Electric shearing machine is applicable to uncoiling, leveling, shearing,workshop of production line for plate processing
3, Electric shearing machine base is steel- welding , the structure is compact, good rigidity.
4, Track of blade movement is precision casting copper,less friction
5, Upper guide can adjust until achieve a good shear section, below blade can adjust via welding screw make the cutting mouth smooth
6, Feeding devices use spring pressure , the clamps have mat piece, pressure force is big, and not easy to damage the sheet metal surface.
7, Electric shearing machine uses completely independent closed gear box transmission system, move directly connection, compact structure, gear have good lubrication, low noise and long life.
8, Electric shearing machine equipped with pneumatic clutch device.
- Main Specifications of Electric Sheet Metal Shear Cutting Machines:

Item	Q11-3*1300	Q11-3*1500	Q11-4*2000	Q11-4*2500
Max. shearing width (mm)	1300	1500	2000	2500
Max. shearing thickness (mm)	3	3	4	4
Shearing Angle	2°	2°	2°	2°
No.of stroke(per minute)	20	20	20	20
Motor power(kw)	3	3	5.5	5.5
Back gauge(mm)	350	350	500	500

Packaging & Shipping 1.All export goods will be packed according to customer requirements before shipment and used in electic sheet metal shear cutting machine.
2.Before the goods arrived destination port, we will provide customer bill of lading and clearance documents for making clearance customs.
Company Profile
FAQ Q1: How long is the warranty? A1: We guarantee a 12-month after-sale service .Any problem when using ,call or mail us ,we will advise on technically sound methods .If needed ,we will provide free accessories Q2: Can I have my own customized product?
A2: Yes, your are welcome customized requirements for color, logo, design, package, carton mark, etc. Q3: How can I get sample and how long will it take? A3: Sample policy is different for different items. Please kindly contact us to get details. Q4: What's the MOQ? A4: MOQ is different for different items, please kindly contact us for confirming. Q5: How do I pay for my purchase order? A5: T/T, L/C at sight, Western Union, MoneyGram Q6: What is your terms of payment? A6: For regular order, T/T 30% as deposit, and 70% before Shipment. We'll show you the photos of the products and packages before you pay the balance Q7: How about your delivery time? A7: Generally, It will take about 7~15 days to send goods out. The specific delivery time depends on the items and the quantity of your order

---
