Farming Equipment Agricultural Machinery Corn Planter 6 Rows

Product Description

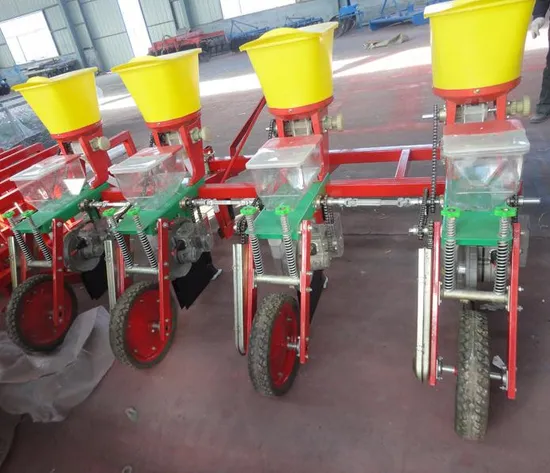

2BCYF-4 Tractor Mounted Corn Maize Planter Maize Corn Seeding Machine
2BCFY maize single grain seeder adopt jaw type seeding(one grain per jaw), accurate hole spacing, the spacing of the sprout is symmetrical, no need to thinning. Can change the spacing of the plant by the transmission box.Row's spacing also can adjusted.The seeder unit is forged aluminum part, high strength. The seeding is driven by ground wheel without any power input, can satisfy different area requirement.
Main characteristic:
1, Sowing by weight, no damage to seeds.
2, High precise seeding, evenly sowing stable, seeds-saving and less thin out seeding.
3, Adopts "zero speed",equal potential energy,low position seeding sturdy,seedling spacing is symmetrical.
4, change the spacing of the seed by the transmission box.
5, seeding apparatus is driven by gears,the clutch can avoid the reverse of the machine and cause trouble.
6, Can open the window cover of the seeding apparatus when clean the seeds,Seeds clearance is convenient and thoroughly.
7, They all can used on the cultivated land and the uncultivated land.
8, Narrow trenching,moisture is good,the fertilizers front or side spreading all can adjustable.
9, Mainly for maize, also soybean, cotton seed, small peanuts, sunflower, sorghum, etc. Multi-purposes, sowing and fertilization and soil cover and ramming all can completed at the same time.

Type	2BCYF-3	2BCYF-4	2BCYF-5	2BCYF-6
Drill depth(mm)	30-50
Empty hole rate of seeds(%)	≤ 2%	≤ 2%	≤ 2%	≤ 2%
Sowing seeds quantity(pc/hole)	1--3
Productivity(ha/h)	0.2-0.3	0.4-0.5	0.65-0.85	0.8-1
Weight(kg)	180	230	320	420
Rows	3	4	5	6
Theoretical rows spacing(cm)	15.24, 19.05, 5.4, 30.48
Fertilizer depth(mm)	60-80	60-80	60-80	60-80
Capacity of fertilizer tank(L)	16*3	16*4	16*5	16*6
Capacity of seeds tank(L)	9*3	9*4	9*6	9*6
Matched power(HP)	12-30	20-50	50-80	50-80

If you need the Corn Planteg, please contact me:

---
