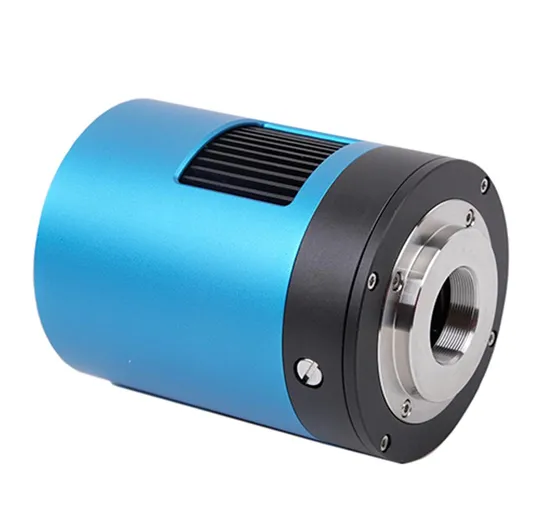

26m Te Cooling Astronomy Camera for Astronomical Telescope with Sony Imx571 1.8” Sensor

Product Description

MSS-CMOS Series TE-Cooling C-mount USB3.0 CMOS Camera (21) The Basic Characteristic of MSS-CMOS Series MSS-CMOS series camera adopts SONY Exmor CMOS sensor as the image-picking device and USB3.0 is used as the transfer interface to increase the frame rate.
With the two-stage peltier cooling sensor chip to -42 degree below ambient temperature. This will greatly increase the signal to noise ratio and decrease the image noise. Smart structure is designed to assure the heat radiation efficiency and avoid the moisture problem. Electric fan is used to increase the heat radiation speed.
MSS-CMOS series comes with advanced video & image processing application ToupView/ToupLite; Providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API;
The MSS-CMOS series can be widely used in low light environment and microscope fluorescence image capture and analysis, as well as the astronomy deep sky application.
MSS-CMOS Series (Cylinder or Square Housing)
The basic characteristic of MSS-CMOS series can be summarized as follows: Standard C-Mount camera with SONY Exmor CMOS sensors; Two-stage TE-cooling with controllable electric fan; Sensor chip cooling up to 42°C below ambient temperature; Working temperature can be regulated to specified temperature in 5 minutes; Smart structure to assure the heat radiation efficiency and avoid the moisture problem; IR-CUT/AR coated windows; Up to 1-hour long time exposure; USB3.0 5Gbit/second interface ensuring high speed data transmission; Ultra-Fine color engine with perfect color reproduction capability; With advanced video & image processing application ToupView/ToupLite; Support both video and trigger modes; Providing Windows/Linux/Mac OS multiple platforms SDK; Native C/C++, C#/VB.NET, DirectShow, Twain control API;
MSS-CMOS Series (Cylinder or Square Housing)
The basic characteristic of MSS-CMOS series can be summarized as follows: Standard C-Mount camera with SONY Exmor CMOS sensors; Two-stage TE-cooling with controllable electric fan; Sensor chip cooling up to 42°C below ambient temperature; Working temperature can be regulated to specified temperature in 5 minutes; Smart structure to assure the heat radiation efficiency and avoid the moisture problem; IR-CUT/AR coated windows; Up to 1-hour long time exposure; USB3.0 5Gbit/second interface ensuring high speed data transmission; Ultra-Fine color engine with perfect color reproduction capability; With advanced video & image processing application ToupView/ToupLite; Support both video and trigger modes; Providing Windows/Linux/Mac OS multiple platforms SDK; Native C/C++, C#/VB.NET, DirectShow, Twain control API; CMOS Series Datasheet

Order Code	Sensor & Size(mm)	Pixel(μm)	G Sensitivity Dark Signal	FPS/Resolution ADC	Binning	Exposure	Price
MSS--CMOS20KPA	20M/IMX183(C, RS) 1 "(13.056x8.755)	2.4 x2.4	462mv with 1/30s 0.21mv with 1/30s	19@5440x3648 48.8@2736x1824 59.4@1824x1216 8 Bit / 12 Bit	1x1 2x2 3x3	0.1ms~1h	850USD FOB
MSS--CMOS26KMA	26M/IMX571(M, RS) 1.8 "(23.48x15.67) APS-C	3.76 x3.76	871mv with 1/30s 0.07mv with 1/30s	14@6224x4168 37@3104x2084 110@2064x1386 8 Bit / 16 Bit	1x1 2x2 3x3	0.1ms~1h	1550USD FOB
MSS--CMOS26KPA	26M/IMX571(C, RS) 1.8"(23.48x15.67) APS-C	3.76 x3.76	485mv with 1/30s 0.07mv with 1/30s	14@6224x4168 37@3104x2084 110@2064x1386 8 Bit / 16 Bit	1x1 2x2 3x3	0.1ms~1h	1380USD FOB
