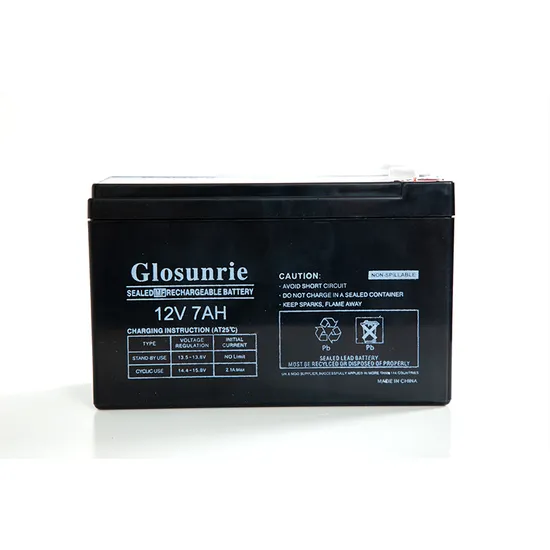

Solar Rechargeable Free Gel Storage Battery for Solar Home Power System 12V 7ah 7.2ah 9ah 12ah Sealed Lead Acid UPS Battery

Product Description

Battery Model	Nominal Voltage			12V
	Rated capacity (10Hour rate)			7Ah
	Cells Per battery			6
Dimension	Length			Width		Height		Total Height
	151mm			65mm		94mm		100mm
Approx Weight	2.05Kg
Internal Resistance				Full charged at 25	(77		): Approx 28m
Max.discharge current	105A(5s)
Floating design life @ 25 (77 )	5 years
Capacity @ 25 (77 )	20Hour rate(0.35A/10.5V)			10Hour rate(0.64/10.8V)		5Hour rate(1.2A/10.8V)		1Hour rate(4.2A/10.5V)
	7Ah			6.4Ah		6Ah		4.2Ah
Capacity affected by Temp(10 HR)	40	(104	)	25 (77 )		0 (32 )		-15	(5	)
	102%			100%		85%		65%
Self Discharge @ 25 (77 )	After 3 months storage			After 6 months storage		After 12 months storage
	91%			82%		64%
Charge method @ 25 (77 )	Cycle Use			14.5-14.9V (Initial charging current less than 2.1A)
	Float Use			13.6-13.8V

F.V / TIME		5min	10min	15min	30min	1h	2h	3h	4h	5h	8h	10h	20h
9.60V	A	25.20	16.45	12.25	8.05	4.20	2.45	1.82	1.45	1.23	0.81	0.67	0.36
	W	267.12	174.70	131.08	86.94	45.78	26.71	20.02	15.91	13.51	9.00	7.38	4.02
10.20V	A	23.10	15.46	11.26	7.64	4.34	2.35	1.79	1.40	1.20	0.80	0.65	0.35
	W	251.79	171.59	125.53	85.97	48.83	26.56	20.17	15.89	13.67	9.06	7.38	4.01
10.50V	A	21.42	14.77	10.50	7.41	4.20	2.30	1.75	1.33	1.19	0.79	0.64	0.35
	W	235.65	166.16	118.65	84.45	47.88	26.38	20.04	15.30	13.69	9.06	7.41	4.03
10.80V	A	19.51	14.12	9.80	7.07	4.06	2.25	1.72	1.31	1.14	0.77	0.63	0.34
	W	214.57	160.93	112.21	81.66	46.89	25.94	19.89	15.22	13.25	8.94	7.31	3.98
11.10V	A	16.87	13.30	9.10	6.58	3.85	2.19	1.65	1.28	1.09	0.75	0.61	0.33
	W	190.63	153.62	105.56	76.99	45.05	25.59	19.33	15.14	12.84	8.81	7.23	3.92

General Series VRLA batteries are designed with AGM(AbsorbentGlass Mat) technology,High performance plates and electrolyte togiveextra power output for common power backup system. General SeriesBatteries are the general purpose batteries with 5 years floating designlife at 25 ºC

---
