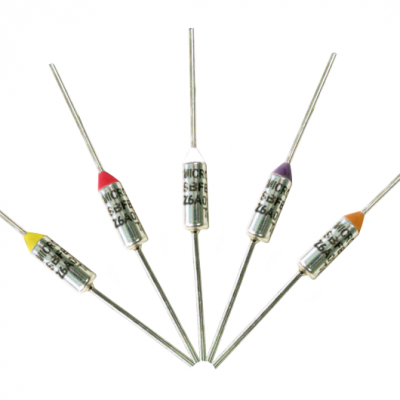

ESKA 780.000/781.000/785.000 Series (Axial Leaded) Temperature-Fuses

Product Details

Product Description

Product Description
ESKA 780.000 Series (Axial Leaded) Temperature-Fuses, THERM-O-DISC G5-Series Thermal Cutoff
Version: short-long (G5A00 or G5A50 series)
Rated current: 20 ARated voltage: AC 250 V
Rated functioning temperature: 72 °C up to 240 °C
Size: ∅ 4.0 x 14.7 mm
Overall length ± 3.0 mm: 63.8 mm
Rated current / Rated voltage
UL / CSA 20 A / 250 V AC, 20 A / 277 V DAC, 21 A / 240VAC, 25 A / 120 V AC,
VDE 20 A / 250 V AC
CCC 20 A / 250 V AC
PSE 15 A / 250 V AC
Korea 16 A / 250 V AC
Art. No. TN[°C] TH [°C] Tmax [°C]
Rated functioning temp Holding temperature Max. temp. limit
780.072 72 57 410
780.077 77 62 410
780.084 84 69 220
780.093 93 78 410
780.098 98 83 410
780.104 104 89 225
780.110 110 95 225
780.117 117 102 410
780.121 121 106 410
780.128 128 113 235
780.144 144 129 410
780.152 152 137 410
780.167 167 152 410
780.184 184 169 410
780.192 192 177 350
780.205 205 190 410
780.216 216 200 410
780.229 229 200 410
780.240 240 200 410
TN[°C] Tolerance: +0 / - 5 °C (IEC 60691)
ESKA 781.000 Series (Axial Leaded) Temperature-Fuses, THERM-O-DISC G5-Series Thermal Cutoff
Version: long-long (G5A01 or G5A51 series)
Rated current: 20 A
Rated voltage: AC 250 V
Rated functioning temperature: 72 °C up to 240 °C
Size: ∅ 4.0 x 14.7 mm
Overall length ± 3.0 mm: 84.7 mm
Rated current / Rated voltage
UL / CSA 20 A / 250 V AC, 20 A / 277 V DAC, 21 A / 240VAC, 25 A / 120 V AC,
VDE 20 A / 250 V AC
CCC 20 A / 250 V AC
PSE 15 A / 250 V AC
Korea 16 A / 250 V AC
Art. No. TN[°C] TH [°C] Tmax [°C]
Rated functioning temp Holding temperature Max. temp. limit
781.072 72 57 410
781.077 77 62 410
781.084 84 69 220
781.093 93 78 410
781.098 98 83 410
781.104 104 89 225
781.110 110 95 225
781.117 117 102 410
781.121 121 106 410
781.128 128 113 235
781.144 144 129 410
781.152 152 137 410
781.167 167 152 410
781.184 184 169 410
781.192 192 177 350
781.205 205 190 410
781.216 216 200 410
781.229 229 200 410
781.240 240 200 410

ESKA 785.000 Series (Axial Leaded) Temperature-Fuses, THERM-O-DISC G8-Series Thermal Cutoff
Version: long-long (G8A01 or G8A51 series)
Rated current: 25 A
Rated voltage: AC 250 V
Rated functioning temperature: 72 °C up to 240 °C
Size: ∅ 4.0 x 14.7 mm
Overall length ± 3.0 mm: 84.7 mm
Rated current / Rated voltage
UL / CSA 20 A / 277 V AC, 25 A / 250VAC
VDE 25 A / 250 V AC
CCC 25 A / 250 V AC
PSE 25 A / 250 V AC
Art. No. TN[°C] TH [°C] Tmax [°C]
Rated functioning temp Holding temperature Max. temp. limit
785.072 72 57 410
785.077 77 62 410
785.084 84 69 220
785.093 93 78 410
785.098 98 83 410
785.104 104 89 225
785.110 110 95 225
785.117 117 102 410
785.121 121 106 410
785.128 128 113 235
785.144 144 129 410
785.167 167 152 410
785.184 184 169 410
785.192 192 177 350
785.229 229 200 410
785.240 240 200 410
TN[°C] Tolerance: +0 / - 5 °C (IEC 60691)

---
