Basic Info.
Carrying Capacity
Light Level
Standard
National Standards
Motor
Hydraulic / Optional Clutch
Transport Package
Wooden Box
Product Description
Product Description

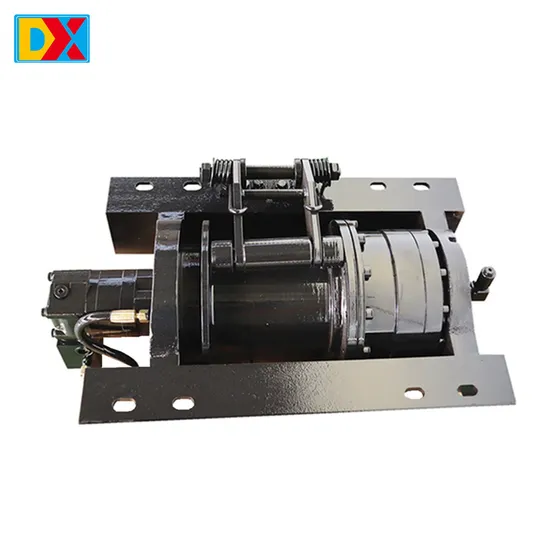

Daixin hydraulic planetary winches are designed with working capacities of 7185.84 Nm to 78400 Nm, satisfying most demands of the towing and lifting, rescue and road clearance, utility, forestry, oil & gas, and mining & construction applications, etc.
The hydraulic winches are operated by air, providing fast ling output, limiting time in the danger zone, reducing wear on
components, and increasing efficiency and productivity on the job.
Most models can be either foot or side mounted for adaptability and ease of maintenance. The compact size reduces cable catch between drum flange and end support housing.
Product Parameters
Hydraulic Winch/Hydraulic Capstan
|
Model
| DJ8
| DJ10
| DJ15
| DJ20
|
Max. Pull capacity
| 75 KN
| 95 KN
| 145 KN
| 196 KN
|
Nominal torque
| 7185.84Nm
| 9897.5 Nm
| 15000 Nm
| 22371 Nm
|
Steel cable length
| 45 m
| 60 m
| 56 m
| 60 m
|
Steel cable diameter
| 14 mm
| 18 mm
| 22 mm
| 26 mm
|
System pressure
| 17 MPa
| 17 MPa
| 16 MPa
| 17 MPa
|
Hydraulic oil volume
| 0.8 L
| 0.8 L
| 0.8 L
| 0.8 L
|
Anchor bolt
| 8×M16
| 8×M20
| 8×M20
| 8×M24
|
Gross weight
| 160 kg
| 271 kg
| 320 kg
| 370 kg
|
Model
| DJ25
| DJ30
| DJ40
| DJ50
|
Max. Pull capacity
| 245 KN
| 294 KN
| 390 KN
| 490 KN
|
Nominal torque
| 34000 Nm
| 41000 Nm
| 54800 Nm
| 78400 Nm
|
Steel cable length
| 55 m
| 55 m
| 68 m
| 68 m
|
Steel cable diameter
| 30 mm
| 32 mm
| 36 mm
| 40 mm
|
System pressure
| 18 MPa
| 17 MPa
| 17 MPa
| 18 MPa
|
Hydraulic oil volume
| 1.5 L
| 1.5 L
| 1.5 L
| 1.5 L
|
Anchor bolt
| 8×M27
| 8×M27
| 8×M33
| 8×M36
|
Gross weight
| 580 kg
| 650 kg
| 725 kg
| 760 kg
|
Packaging & Shipping
1. Packed by wooden box, fumigation-free for export and import standard.
2. Shipped by sea or air with customer require
