Fully Automatic Winder and Cutter (Single Wall Corrugated Pipe)

Product Description

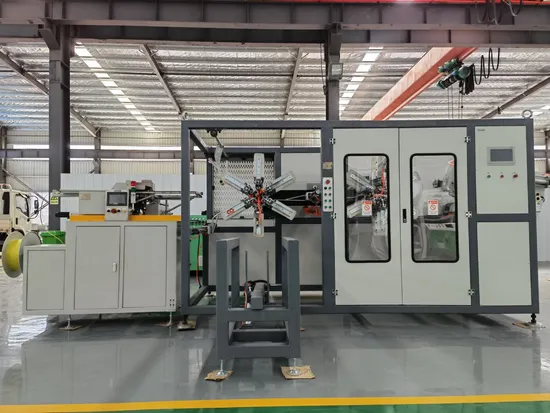

Fully Automatic Winder and Cutter

(Single Wall Corrugated Pipe)
Machine components:

Automatic winding machine - 1 set					Automatic packing machine -1 set
Servo motor to place pipe structure	Double working position structure	Automatic coil changing structure	Automatic cutting structure	Coil unloading structure	PP Strap packing structure
NM 16-32
Delivery time:45 days

Introduction Name: Automatic winding and packing machine for single wall corrugated pipe Total weight of this machine: about 3000KG Processing flow:

Name	Qty.	Model	Note
Automatic winder	1	16-32mm	Automatic changing coils cutting, packing and unloading.

Unloading

Coil changing

Cutting

Packing

4.Layout scheme is the below photo:
Technical features: Automatically packing coils of single wall corrugated pipe diameters:16mm, 20mm, 25mm, 32mm. Number of straps: 2/4/6 optional Packing structure:encircled pipe melting packing , PP strap size:14mm. 4)Winding width range (Drum width ): 70mm - 250mm
5)Winding inner diameter range (The inner diameter of the drum): 300mm - 460mm
6) The outer diameter of the drum: 700 mm.
7) Maximum coil weight 15 kg.
8) Speed: winding maximum speed - 30m/min
9) Machine overall size: 5100mm*2000mm*2100mm(L×W×H)
10) Painting color: protection cover for electrical parts is white color (No. 7035), other
parts are grey color.
11)Electrical control type is: Aluminum rocker-arm PLC control.
12)Controlled with HMI+PLC+Servo motor+coder+electromagnetic valve+pneumatic cylinder
III. Installation requirements

Installed place	Indoor
Power	AC 380V
Moisture	85% without condensation
Temperature	-20/45°C
Voltage:AC 380V(+10%,-10%) 60Hz TNS ground
--Installation power	8kw
--Power supply	3P+N+PE
Power supply and phases	3 phases, 380±10%,60Hz
Cooling water	No need
Compressed air:air pressure>0. 6MPa	No less than1. 0 CBM/h

IV.Technical Configuration
(1) Main technical performance of the equipment:
1. The safety of the equipment complies with the corresponding national standards, with emergency stop switches, indicator lights, etc., and various safety signs.
2. Brands of key parts:

No.	Name	Brand	Note
1	Pneumatic parts	AirTAC
2	Proximity switch, photo electric switch	Schneide
3	Bearing, rod, slider block	China brands
4	Contactor	Schneide
5	Circuit breaker	Schneide
7	PLC	Xinje
8	Touch screen	Xinje
9	Servo motor and driver	Xinje
10	Motor of reduction box	FLK
11	Switching power	DELTA
12	Buttons and indicators	Schneide
13	Alarming light	DC24V-blue,red,green,blue - with sound +

(2)Machine indicator and nameplate
1) Main nameplate 1 set,including:name, model, factory, date of production and etc.
2) This machine has clear indicator to show working situation:
a) Green light:normal running
b) Yellow light:stopped
c) Red light:abnormal or malfunction.
(3)Control type
1) Automatic/Manual control;
2) Human-machine interface interaction (equipment operating status, indicators; remote control port reserved).
(4)Equipment Color: Gray Lines, White Guards
V. Automatic packing data:
1. Voltage and power: 380V
2. Packing speed: ≤20 seconds/pc
3. Applicable package size: subject to drawings (refer to contract attachments)
4. Applicable packing belt material: PP strap
5. Applicable packing belt specifications: Width: 14mm
6. Packing tightness: ≤80kgs
7. Bonding method: hot welding
8. Movement device of movement: automatic movement (stop automatically after the limit control is in place)
9. Moving device of the whole machine: automatic movement (stop automatically after the limit control is in place)
VI. Electrical parts of automatic packing machine:
1. Control method: fully automatic strapping and packaging
2. Movement: Domestic movement (small size, space saving, higher stability)
3. Movement driving mode of movement: motor-driven movement
4. Moving device of the whole machine: motor-driven movement
VII. Coils sizes for reference

O.D. of pipe (mm)	I.D. of coil (mm)	O.D. of coil (mm)	Width of coiling(mm)	Coiling circles	Coiling layers	Length of each coil (m)	Working position
20mm	300	680	260	13	9	200	2
25mm	350	700	225	9	7	100	2
32mm	350	700	288	8	7	100	2

---
