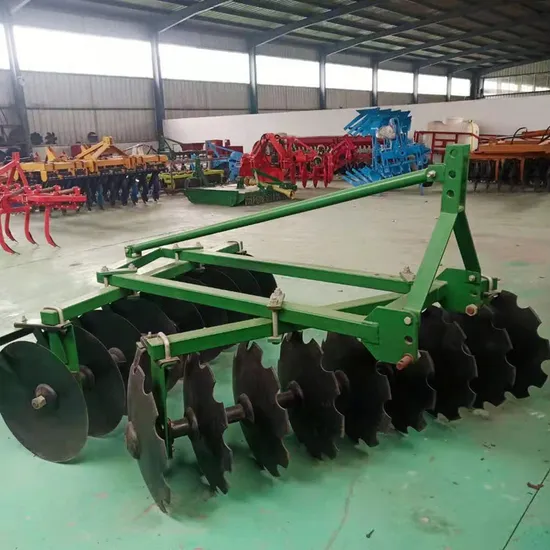

Hot Sale Disc Harrow Middle-Duty Disc Harrow (1BJX-2.0 series)

Product Description

Medium Harrow
The 1BJX series Middle-duty Disc Harrow's front gangs are assembled with scalloped disc, and rear gangs with plain disc. The harrows are adopted a whole frame made of quadrangular steel tubes by welding, So their structures are simple and reasonable, strong and durable. Their processes are perfect. The bearing is ball bearing with sphere-outside and square-inside, its rated load is large, trailing resistance is small, sealing is good. They're convenient to operate and maintain. Efficient in pulverizing and penetrating into the soil and leaves the land with a smooth, even tilth. All these satisfy the agricultural requirements of intensive cultivation.
The 1BJX series Disc Harrow are suitable for pulverized and loosening clods on sticky heavy clay soil after ploughing and for planning the land before sowing. On cultivated land, the machines can make soil and fertilizer mix up, and clear away the stump of plants and be used instead of plough on light or medium soil and preparing seed bed for planting.
The 1BJX series agricultural machinery mounted disc harrows are suitable for cleaning away stubble of plants before ploughing, or crushing soil after ploughing on dry cultivated land leveling land before seeding, they can be used instead of plough on light soil land, The front gang is assembled with scalloped disc, the rear with plain disc.

Model	Uint	1BJX-1.7	1BJX-2.O	1BJX-2.2	1BJX-2.4	1BJX-2.5
Woeking width	M	1.7	2	2.2	2.4	2.5
Working depth	Cm	14-18
Angle of approach	Deg	11 14 17 20 23			14 17 20 23 26
No.Of disc	Pcs	16	18	20	22	24
Productivity	Ha/h	1.3	1.5	1.6	1.8	1.9
Overall dimension	Mm	1960*1880*1317	1980*2240*1317	1980*2470*1317	2780*2570*1340	2970*2680*1460
Linkage		Three point mounted
Weight	Kg	400	434	463	604	700
Matched power	Kw	25.7-33	36.7-47.7	40-47.8	47.7-58.8	55-60

---
