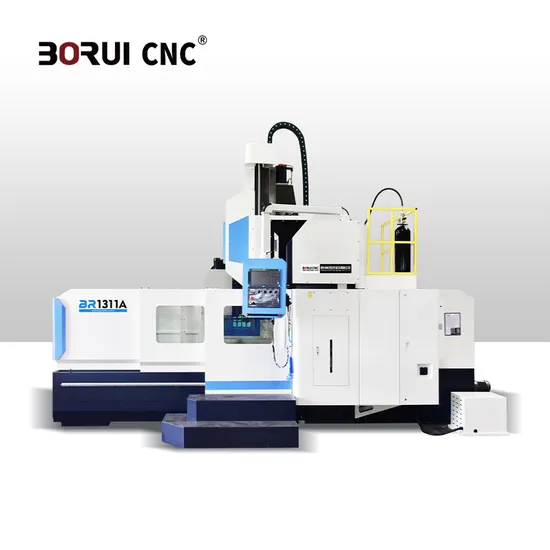

Gantry Type Milling Machine 5-Axis Machining Center Large Gantry 5 Axis CNC Br1311A

Product Description

Gantry Type Milling Machine 5-axis Machining Center Large Gantry 5 Axis Cnc BR1311A Product Description
The gantry machining center refers to the machining center in which the axis of the Z axis of the main shaft is perpendicular to the worktable. Especially suitable for machining large workpieces and workpieces with complex shapes. There are fixed beam type (beam fixed, worktable moving/rotating), moving beam type (beam moving up and down, worktable moving back and forth), moving column type (worktable fixed, gantry moving), crane type (worktable fixed, cross beam) Mobile) There are also multiple types of gantry machining centers in the above composite form. Gantry machining center adheres to the characteristics of traditional gantry machine tools with strong rigidity, symmetrical structure and high stability. Through finite element analysis, the structure of basic components is optimized, the dynamic performance of products is improved, and the perfect combination of high power, high torque, high efficiency and high precision machining is realized. . It is suitable for large and heavy processing fields such as ships, metallurgy, petrochemicals, mining machinery, electric energy, plastic machinery, construction machinery, and heavy industry machinery.

Product Parameters

Type	BR1311A	BR1311B
Travel(X*Y*Z)(mm)	1300*1100*530	1300*1100*530
Table size(X*Y)(mm)	1300*1100	1300*1100
Maximum load(KG)	2000	2000
Distance from spindle nose to table(mm)	100-630(Proboscinal spindle)	100-640(Proboscinal spindle)
Spindle housing spindle mounting face distance to table surface	240	250
Inner width of gantry frame(mm)	1200	1200
The height through which the gantry can pass(mm)	900	870
Screw specification(X*Y*Z)(mm)	40*40*40	40*40*40
Roller guide specifications(X*Y*Z)(mm)	45*45*45	45*45*45-45
Number of sliders(X*Y*Z)(PCS)	X:4;Y:4;Z:6	X:4;Y:4;Z:8
Lead screw pitch(mm)	X/Y/Z*10 or 12	X/Y/Z*10 or 12
Number of T-slots(PCS)	7-M167	7-M167
spindle(Specifications - Mounting diameter)	150	150
Spindle connection mode	belt connection	belt connection
Optical machine dimensions(L*W*H mm)	3550*2330*2710	3550*2330*2710
Casting body weight(about)(T)	5.8	6
Sheet metal weight(about)(KG)	1200	1300

Details Display

Packaging & Shipping
Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.

---
