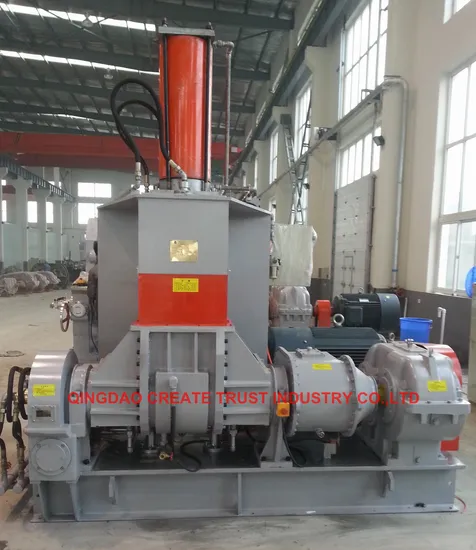

High Quality Rubber Kneader with PLC Control System (CE/ISO9001)

Product Description

Name: Rubber kneader,Rubber kneader mixer,rubber dispersion kneader,Rubber banbury mixer,Rubber dispersion kneader,Rubber kneading machine,EVA kneader,Rubber mixer
Model number : X(S)N55L

Usage: Propose usable for rubber or plastic plasticizing and mixing or rubber and plastic blending.

FEATURES :

1. Rubber or plastic stock can be plasticized or mixed in a closed and pressurized space with the temperature controlled so that the productivity is high and the quality is good and stable.

2. Optimization of the parameters such as the helical angle of rotor wings and the wing overlap length brings about homogeneous distribution of the stock.

3. All the parts in contact with stock are plated with hard chrome and polished. The rotor wings are built up by welding with the carbide alloy to resist abrasion and corrosion.

4.All the parts in contact with stock are of the jacket design where water/steam/medium oil is lead through to provide cooling or heating and can meet different requirements for the rubber or plastic mixing process.

5. Stock is fed through the rear door of the frame work (or other port) and discharged by titling the mixing chamber forwarder by 1400 , such a design makes it possible to arrange the upstream and the downstream process steps in a line and facilitates stock clolor changing and mixing chamber cleaning .

6. Programmable logic controllers (PLC) are used for the electrical control system. It provides the perfect and reliable control ,detection&alarm and the necessary safty interlocking fuctions and hase the serial interfaces for connection to the net work.

Type		X(S)N-10X32	X(S)N-20X34	X(S)N-35X30	X(S)N-55X30B	X(S)N-75X30	X(S)N-110X30
Pinching total cubage	L	25	45	75	125	175	250
Dense smelting total cubage	L	10	20	35	55	75	110
Main motor power	KW	22	22	55	75	110	185
Overturn motor power	KW	1.1	1.5	2.2	2.2	3.0	7.5
Overturn angle	0	140	140	140	140	140	140
Rotate speed of rotor oxis(front/back))	r/min	32/25	34/28	30/24.5	30/24.5	30/24.5	30/24.5
Pressure of compressing air	Mpa	0.5~0.8	0.6~0.8	0.6~0.8	0.6~0.8	0.6~0.8	0.6~0.8
Pressure of cooling water	Mpa	0.2~0.4	.0.2~0.4	.0.2~0.4	0.2~0.4	0.2~0.4	0.2~0.4
Pressure of heating vapor	Mpa	0.5~0.8	0.5~0.8	0.5~0.8	0.5~0.8	0.5~0.8	0.5~0.8
Overall size (L x W x H)	mm	2640x1650x2350	3100x1300x2450	3200x1900x2945	3300x1900x2900	3760x2143x3135	4075x2712x3580
Weight	kg	3300	4500	6500	7800	10230	14970

Service of us :
The production of all products are follow ISO9001:2008 organization system, from raw material processing to assembe and finally test running. even the packing, and delivery. Also we track the use of machine,installation, products producing technical ect.
All we do is for longterm cooperation , " CREATE TURST" !

---
