Welcome to visit

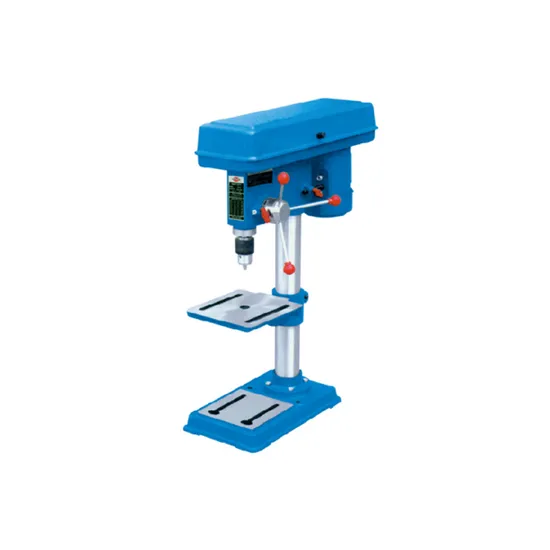

Mini Bench Drilling Press Machine

US$95.00
10-19 Sets
US$90.00
20-99 Sets
US$78.00
100+ Sets

Basic Info.

Model NO.
SP5213B
Structure
Bench Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Automatic Grade
Manual
Certification
CE
Condition
New
Drilling Capacity
13mm(1/2")
Motor Power
250/300/350W
Chuck Capacity
1.5-13mm
Spindle Stroke
50mm
Speed 50/60Hz
620~2620/740~3140 r.p.m
Spindle Taper
B16
Swing
210mm
Table Size
190X190mm
Base Size
340X210mm
Height
680mm
N.W./G.W.
22/25kg
Packing Size
570X410X265mm
Transport Package
Plywood Box
Trademark
SUMORE
HS Code
8458912090
Production Capacity
10

Product Description

Product Description
SP5213B mini bench drilling press machine is one our best selling drill press machine, which has a very good market in Germany, it is made in China, but have similar quality as German drill press.1) Height adjustable worktable for precise operation.2)5Speeds settings ranging3) With cast iron shell motor ensure the machine can be work overload.4) Stable base plate with slots for vice fastening.5) GS/CE/EMC/ROHS/PAH certification available.
Product Parameters
Model
SP5213B
Drilling capacity
Ø13mm(1/2")
Motor power
250/300/350W
Chuck Capacity
1.5-13mm
Spindle stroke
60mm
Class Of Speed
5
Speed 50/60Hz
620~2620/740~3140 R.P.M
Spindle taper
B16
Auto-feeding step of worktable
130mm
Max.distance from spindle end to surface of table
255mm
Max.distance from spindle end to surface of base
370mm
Swing
260mm
Table size
190X190mm
Base Size
340X210mm
Column Diameter
Ø58mm
Height
680mm
N.W./G.W.
22/25kg
Packing size
570X410X265mm

Company Profile
As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years.
We have got the certificates of CE, GS ,Rohs , UL ,etc . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!
