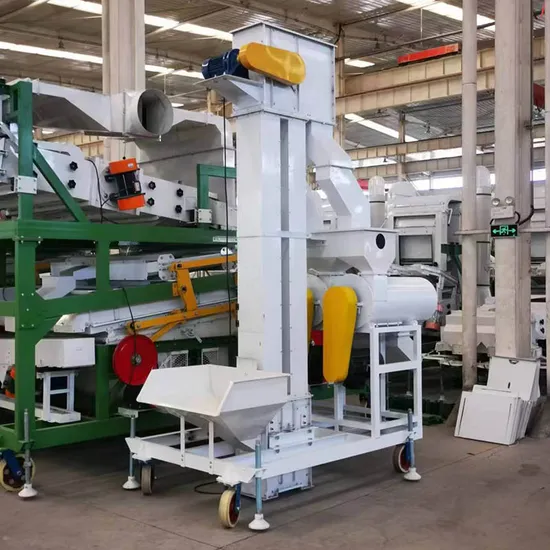

Wheat Seed Hulling Machine with Double Shelling Cylinder

Product Description

Product Description
This type of wheat hulling machine mainly uses flexible rolling to control the rubbing force between materials through reasonable rotational speed and material inventory in the cylinder, and to remove shells, awns, wings, hairs, thorns, and tips attached to the materials.
After starting the machine, feed the wheat grains into the feeding hopper of the sheller, and the grains flow into the machinebarrel. The seeds are stirred and rubbed by the rotating shaft inside the machine barrel to achieve dehulling, and the mixed materials after dehulling flow out of the machine barrel through the discharge port.
Structural diagram.
This machine can be used alone or combined with our company's 5XZC series air-screen seed cleaner or 5XJC series gravity separator.
Product Advantages
★ Service life: The cylinder material is 8mm seamless pipe, which is wear-resistant and has a long service life.
★ Damage rate: Flexible shelling to reduce damage rate.
★ Convenient cleaning: There is a cleaning door at the bottom of the cylinder to achieve fast cleaning and prevent seed mixing.
★ Equipped with a bucket elevator, the integrated structure runs smoothly.
★ Compact structure: equipped with fixed adjustment screw and mobile wheel equipment for smooth operation and convenient movement
Detailed Photos
Product Parameters

Model	5XT-5	5XT-7.5	5XT-15	5XT-20
Max-capacity	5000 Kg/h	7500 Kg/h	10000 Kg/h	20000 Kg/h
Size (mm)	1210×815×1355	1250×815×1355	1700×1250×2300	1700×1870×2900
Weight	135 Kg	150 Kg	260 Kg	350 Kg
Power	380V 50Hz 3-Phase
Total power	5.5 kW	7.5 kW	15.75 kW	23.25 kW
Hulling rate	≥97%
Broken rate	≤0.2%
Number of Shelling Machine Barrels	1	1	2	3
Marked	Without bucket elevator		With bucket elevator

Note: The capacities may vary depending on seed condition, moisture content, seed varieties, types and volumes of contaminants to be separated and percentage of foreign material acceptable in the final product.
