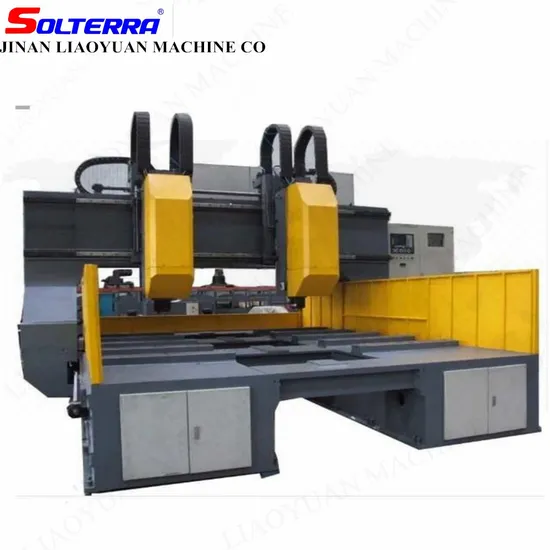

Advanced CNC High Speed Metal Steel Drilling Machine for Steel Plates with Morse Taper Bt50

Product Description

Advanced CNC High Speed Metal Steel Drilling Machine for Steel Plates with Morse Taper Bt50
MACHINE APPLICATION
1.Our Advanced CNC Drilling Machine for Steel Plates with Morse Taper Bt50 is designed to excel in drilling processes for tube plates, clapboards, and flanges. It's a cornerstone in industries such as petrochemical, boiler manufacturing, and wind power flange production. Additionally, it's perfect for creating joint plates used in construction, bridges, and iron towers.
2. This machine stands out with its high efficiency and stable working accuracy, ensuring every operation is seamless. It is also user-friendly, allowing for easy operation and minimal training requirements.
MACHINE FEATURES
1. Featuring heavy-load linear roller guide pairs strategically placed on both sides of the robust machine bed, ensuring unparalleled stability and precision.
2. Equipped with two meticulously engineered movable slides on the cross beam of the gantry, designed for optimal flexibility and control.
3.The machine boasts a sophisticated hydraulic system that ensures flawless hydraulic balance of the vertical ram and seamless hydraulic cutter loosing of the spindle.
4.Incorporates the state-of-the-art FAGOR 8055 CNC system from Spain, featuring an RS232 interface and a user-friendly LCD screen for efficient operations.
5.Comes with an advanced chain-plate type automatic chip-conveyor and a chip collection trolley, simplifying maintenance and enhancing productivity.
6. Utilizes top-tier key machinery, hydraulic pressure, and electric components selected from renowned domestic and international brands, ensuring reliability and longevity.
TECHNICAL PARAMETERS

Max. size of workpiece (mm)	Max. hole distance L×W (mm)	3000x1600mm
	Max. thickness(mm)	100
Worktable	Width/distance of T groove(mm)	28/500
Drilling spindle	Quantity	1
	Spindle taper	BT50
	Max. diameter of drilling(mm)	Φ40 (carbide drill) Φ50(high speed twist drill)
	Rotation speed(conver, stepless)(r/min)	30~3000
	Motor power of spindles(kW)	18.5kW
Chip removal and cooling	Type of chip-conveyor	Chain-plate type
	Quantity of chip-conveyor	1
Overall dimension	L×W×H (mm)	4900x3900x3200
Weight of machine(kgs)		Appr. 13200

PACKAGES AND DELIVERY

LIAOYUAN CO' SERVICE

Comprehensive Care: Pre-Sales and After-Sales Service *In-depthConsultations and Expert Inquiry Support* Professional Training on Machine Installation
* 24/7 Support through Phone, Email, and In-Person Assistance, including thorough training on machine usage
* Personalized Factory Tours* Continuous Customer Engagement Post-Purchase
* Electrical & Mechanical Technical Support: We won't ignore your calls
* Efficient Parts Ordering Service* Engineers Available for Overseas Machinery Servicing
LIAOYUAN COMPANY PROFILE

JINAN LIAOYUAN MACHINE COMPANY INFORMATION Jinan Liaoyuan Machine Co., Ltd. is strategically located in Jinan, Shandong province, China. Renowned as a global leader in the CNC machine tools industry, our company has been at the forefront of manufacturing high-quality CNC machines for over two decades. Starting from humble beginnings, we have evolved into one of the premier suppliers of CNC machinery in Shandong, specializing in the research, development, and production of cutting-edge CNC machines. Our extensive product line includes CNC Angle Steel Punching Machines, CNC Angle Steel Drilling Machines, CNC Plate Drilling Cutting Machines, CNC Beam Drilling Marking Beveling Machines, CNC Band Saw Cutting Machines, and a variety of CNC machine centers. Jinan Liaoyuan Machine Co., Ltd. is committed to providing turnkey solutions and exceptional services to meet your production demands.
JINAN LIAOYUANCNC HISTORY * Founding period (1991-2008): Establishing a strong foundation, we embarked on our journey to revolutionize CNC technology.
* Continuous growth (2008-2013): Marked by significant growth, we expanded our capabilities and market reach.
* Innovation expansion (2013-2017): Embracing innovation, we introduced new technologies and expanded our product portfolio.
* JINAN LIAOYUAN MACHINE today
The machines manufactured by JINAN LIAOYUAN are utilized across a myriad of industries, ranging from steel structure and angle towers to metal construction, pipeline, pressure vessels, shipbuilding, bridge construction, wind energy, and heat exchanger industries. Our versatile products are designed to serve diverse applications, ensuring superior performance and reliability in every field.
CUSTOMER FEEDBACK
Frequently Asked Questions (FAQ) Question 1: Are you a manufacturer or a trading company?
Answer 1: We are not a trading company. We are the leading machine manufacturer, handling everything from raw material casting, machine body processing, and assembly to painting and rigorous quality inspection.
Question 2: What is the minimum quantity for an order?
Answer 2: Normally, one set. We offer discounts if you purchase a complete set of our machines.
Question 3: Do you have stock products ready for delivery?
Answer 3: Yes, we have many machines in stock, ensuring fast delivery times.
Question 4: How do you deliver the finished products?
Answer 4: For Full Container Load (FCL), we deliver by sea.
For Less than Container Load (LCL), we deliver by sea. For urgent requirements, we deliver by plane.
For spare parts, we deliver via courier services such as ***, FedEx, DHL, UPS, EMS, and others.

---
