Lower Price High Response New Style High-Speed Injection Molding Machine for Thin Wall Product Hxh430

Product Description

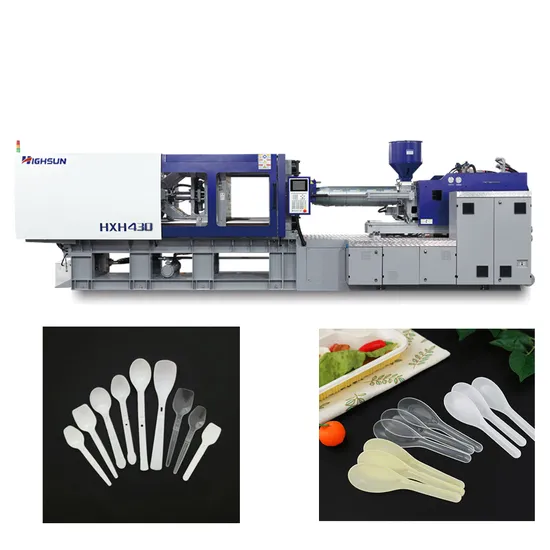

1.Picture
2. Specifications

MODEL:HXH430
TECHNICAL PARAMETER TABLE			A	B	C	D
INJECTION UNIT	SCREW DIAMETER	mm	55	60
	SCREW L/D RATIO	L/D	24	22
	INJECTION CAPACITY IN THEORY	cm3	582	692
	INJECTION WEIGHT(PS)	g	529	630
		oz
	INJECTION PRESSURE	MPa	175	148
	INJECTION RATE	g/s	350	350
	PLASTICIZING CAPACITY	g/s	80	97
	SCREW SPEED	rpm	400
CLAMPING UNIT	CLAMPING FORCE	KN	4300
	MOVING MOULD-PLATE STROKE	mm	690
	MAX. MOULD HEIGHT	mm	780
	MIN. MOULD HEIGHT	mm	280
	SPACE BETWEEN TIE-BARS (W×H)	mm	760*710
	HYDRAULIC EJECTOR FORCE	mm	181
	HYDRAULIC EJECTOR STROKE	KN	180
	EJECTOR NUMBER	n	13
OTHERS	PUMP PRESSURE	MPa	17.5
	MOTOR /DRIVING POWER	KW	37+45
	HEATING CAPACITY	KW	20.3
	MACHINE DIMENSION (L×W×H)	m	7.5*1.96*2.1
	MACHINE WEIGHT	t	16
	OIL TANK CAPACITY	L	850

3. Advantage
a. SUPER ENERGY SAVING
Output power varies with the load, and no energy is wasted. In the holding pressure phase, the servo motor willreduce speed, with low energy consumption; during the cool-down period, the motor does not work, with zero power consumption. Compared with the ordinary injection molding machines, it can save 20%-80% of the power.
b. HIGH PRECISION AND HIGH STABILITY
Equipped with the precise pressure sensor and rotary encoder, it can respectively monitor and feed back on flow and pressure. Based on the feedback, the high performance synchronous servo motor will adjust flow and pressure accordingly by changing the speed and torque. The closed-loop control can ensure the stability of product quality.
c. HIGH RESPONSE AND HIGH EFFICIENCY
The driving system responses with high sensitivity . It takes only 0.05 seconds to reach maximum value. The response speed is much faster than the ordinary injection molding machines. In that way, it significantly shortens the cycle time and increases the production efficiency.
4. Product Produced by Injection Molding Machine
5. Factory
6. Company Introduction
China top 1 plastic injecion molding machine
a. Honored with "Top 3" manufacturer of comprehensive strength by NBPMA over the past decade.
b. Established in 1973. Concentrate on Injection Molding field more than 50 years.
c. It covers an area of 1.2 million square feet.
d. Sold to more than 40 countries around the world.
e. Annual output more than 7000sets,ensuring faster delivery time.
f. Worldwide sales reached 130 million US dollars, exports maintain steady growth.

---
