Rectanglure Paper Bowl Machine Paper Bowl Lid Machine for Take Away.

Product Description

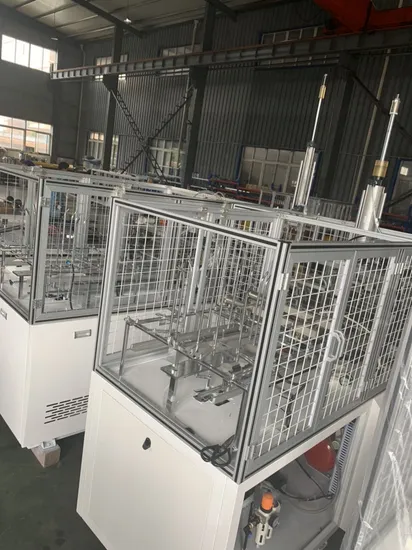

ZGJ-70J Rectangular Paper Lid Forming Machine
ZGJ-70F Square Paper Lid Forming Machine
ZGJ-70T Oval Paper Lid Forming Machine
1.The rectangular/square/oval paper cover forming machine series equipment adopts the world's leading technology, has the advantages of stable performance, high efficiency, environmental protection and energy saving, and fully fills the blank of domestic paper cover machines. It is a patented product of our company.
2.Rectangular/square/oval paper lid forming machine series equipment is the ideal equipment for producing paper lids for soup bowls, instant noodle bowls, ice cream paper cup lids, chocolate box lids and other special-shaped container lids. The automatic paper lid forming machine is easy to operate, stable in performance, small in area and high in efficiency..
3. Main advantages:
The body is made of high-quality materials with high strength.
The structure runs smoothly, the molding is stable, and the noise is low.
The safety protection system is reliable.
Double cover can put two pieces directly on the machine (the second system device is optional)
Technical Parameters
Customs code: 8441309000
Paper cover specifications:
height (14-20) mm, ZGJ-70J Min diameter 65*65 mm, Max diameter 125*125mm
speed: 45/PCS per minute.
Height (14-20) mm, ZGJ-70F Min diameter 130*130 mm, Max diameter 190*190mm
speed: 40/PCS per minute
Height (14-20) mm, ZGJ-70T diameter (65 -130) mm, speed: 45/PCS per minute.
Applicable paper: single and double PE/PLA coated paper, coated paper, glazing coated paper (280-480g/m2)
Power: 6.5kw
Power supply: AC380V 3-phase, 50Hz (can be customized according to customers)
Working air source: air consumption 0.12 cubic meters per minute, working air pressure 0.4MPa
The total weight of the equipment: Rectangular paper lid machine .3000KG.
Square paper lid machine.3500KG.
Oval Paper super lid machine 3000KG.
Rectangular paper lid machine packaging size 2350*1700*1850mm
Square paper lid machine packaging size 2450*1700*1900mm
Oval paper lid machine packaging size 2350*1700*1850mm

---
