CE Approved Pet Semi-Automatic Blow Molding Machine

Product Description

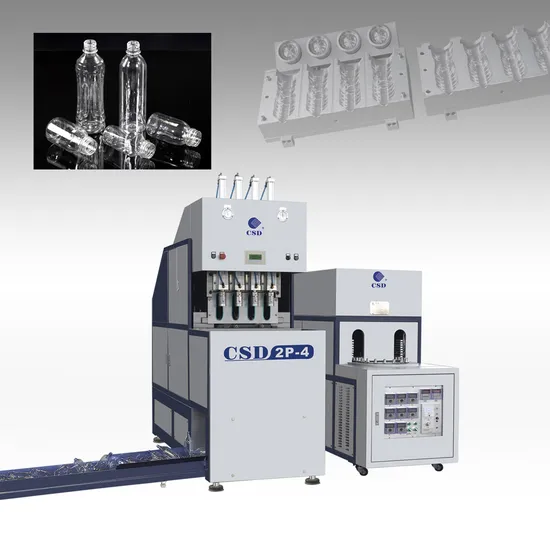

CSD-2P-4 SEMI-AUTOMATIC BLOW MOLDING MACHINE
Main supplier of components:
1.PLC OMRON(JAPAN)
2.Air Blowing Valve PARKER (SWITZERLAND)
3.Air Valve for Mold Clamping BOSCH (GERMANY) Or REXROTH (GERMANY)
4.Air Cylinder AOSI (SINO-KOREA JOINT VENTURE COMPANY)
5.Air Pipe for Blowing TOKAI (JAPAN)
6.Air Pipe for Clamping TPUCO (TAIWAN)
7.Oil Lubricator MINDMAN(KOREA)
8.Switches OMRON (JAPAN)
9.All Pipe Connector SANG-A(KOREA)

SEMI-AUTOMATIC BLOW MOLDING MACHINES
Item		Unit	TECHNICAL DATA
			CSD-2P/CSD-2		CSD-3P/CSD-3		CSD-2P-4
Max.Volume of Product		L	2×2 / 1×3		2×2 / 1×7		1.5×4
Production Capacity		Pcs/h	840-360		840-360		1300
Neck Size of Product		mm	<75		<75		28-32
Useful Area of Mould Plate		mm	380×290		380×290		560×300
Max.Mould Thickness		mm	200		280		280
Min.Mould Thickness		mm	120		170		170
Mould Stroke		mm	135		210		265
Clamping Force		kn	80		80		100
Stretching Stroke		mm	410		410		500
Working Pressure		Mpa	1.0-1.25		1.0-1.25		1.0-1.25
Blowing Air Pressure		Mpa	2.5-3.0		2.5-3.0		2.5-3.0
Power of Main Blower		kw	0.1		0.1		0.15
		A	0.5		0.5		0.75
Power of Preheater		kw	12		24		24
		A	18		36		36
Weight of Main Blower		kg	690		800		1500
Weight of Preheater		kg	280		380		380
Measurement of Main Blower		mm	1520×580×1750		1830×580×1800		2300×800×2000
Measurement of Preheater		mm	1350×485×1450		1450×700×1350		1800×750×1500

---
