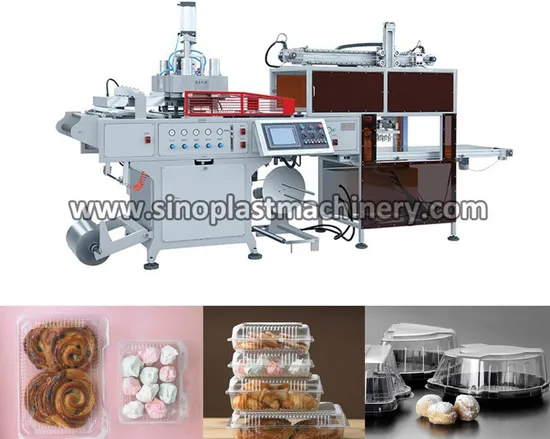

Automatic BOPS Thermoforming Machine with Stacking Air Pressure

Product Description

Features:
1) It is used for forming not only BOPS but also HIPS/PS/PVC/PET plastic sheet into various of boxes, dishes, trays, bowls and lids.
2) It combines the material feeding, heating, shaping, and cutting into one process. The final products have been already cut one by one.
3) This machine adopts PLC program system, capability reliable, quality jarless, fault few. Servo motor drives the sheet transport system.
4) It has quickly production capacity, highly utilization ratios of plastic sheet, low air consumption and maintenance,
Beautiful final ready products, so it is new generation ideal package equipment.
Main Technical Parameters:

Model	SP-510/580
Max. Forming Area	510×580mm
Max. Forming Height	≤120mm
Sheet Thickness Range	0.15-1mm
Max. Dia. of Sheet Roll	710mm
Max. Cutting Length	5500mm
Suitable Material	OPS/HIPS/PVC/PET Sheet
Output	10-25cycles/min
Mould Platen Heating Power	15KW
Exhausted air volume	1200Liters/min
Water Consumption	10Liters/min (10-20ºC)
Power Source	380V,50Hz, Tri-phase
Machine Dimension	2.75×1.41×2.15(m)
Machine Weight	2.0T

---
