Lead Frame Tank Chain Selective Silver Plating Machine

Product Description

Product Description

Integrated Circuit Lead Frame tank chain selective silver palting equipment
Speed: 3-12m/min
Channel: 2
Accuracy: ±0.075mm
The way of unlaod and offload: Roll to Roll
Applicable product width: 10-110mm; thickness: 0.127-2.03mm
Tank chain plating is to assemble a number of mask modules into a track-like shape, which is similar to a tank track. The Lead Frame is closely attached to the Chain Type Plating mask and rotates accordingly. The electroplating solution is sprayed from the bottom of the mold to the top at a high speed through a special Anode Plate.

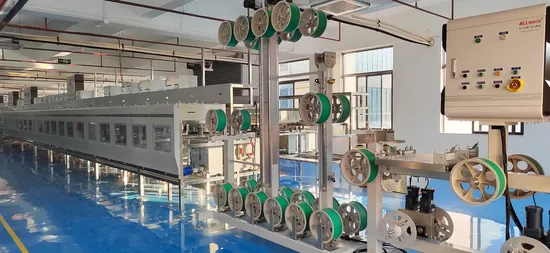

Detail Photos

Component

Frame	316 Stainless steel
Tank	SIMONA PP
Pipeline	pp ball valve Use internationally renowned brands
Motor	The turbo reduction motor uses a frequency converter to control the speedregulation
Pump	Upright pump
Electrical components	OMRON/LG/orsamerank brand
Pneumatic components	SMC/AirTAC/or same rank brand
Photoelectric sensor	Level control switch
Heating tubes	Titanium
PLC automatic control	Japan Omron /japan Mitsubishi
Inverter	Japan Panasonic/or samerank brand
High-pressure pump	ltalian Inte Plunger Pump

Certifications
Company Profile
Our Customers
FAQ
FAQ
Q:Are you manufacturer or trading company ?
A:We are a professional manufacturer of large-scale research and production of semiconductor wet process equipment. We have a professional research and development team and production and assembly workshop, which can ensure quality and after-sales service.
Q:What is the width of the equipment ?
A:The width of the equipment is about two meters.
Q:How long is the warranty ?
A:The warranty period of our equipment is one year. One-step service, professional engineers to follow up to solve the problem.
Q:What is the packaging of the equipment like? What is the delivery method?
A:Standard export fumigation sign wooden box packing or delivery by land or sea.
Q:how to install and debug the equipment after its arrival ?
A:After the equipment is issued, we will arrange a senior installation and debugging team to the your company to complete the installation,debugging,training,etc.,and assist your company in the early mass production.

---
